35 Ton Boom Capacity Wrecker Body INT 35 Wrecker Truck Wireless Remote Control
35 Ton Boom Capacity Wrecker Body INT 35 Wrecker Truck Wireless Remote Control
Description :
Our INT - 35 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .
As with all Suny Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .
Our INT - 35 unit is an everyday heavy wrecker ideal for every job from a tractor trailer to recovery calls . This unit will spend little time in you yard as it will always be grabbing the lucrative calls . It has been designed from the ground up with the operator in mind for towing and recovery calls and to work with loads up to 35 ton ( 77 , 000 lbs ) .
Specifications :
35 Ton Boom Capacity Tow Truck Upper Body INT 35 Wrecker Truck
| WINCH SPECIFICATIONS | |
| Quantity | 2 winches |
| Pulling force ( on 1st layer ) | 20 ton ( 44 , 000 lbs ) |
| Winch Type | Planetary |
| Cable length | 19 mm x 60 m ( 3 / 4 " x 200 ' ) |
| BOOM SPECIFICATIONS at 32 ° | |
| Retracted capacity | 35 ton ( 77 , 100 lbs ) |
| Extended capacity | 17 , 5 ton ( 38 , 500 lbs ) |
| Extended capacity | 32 ° |
| Maximum hook height | 5913 mm ( 233 " ) |
| Reach past tailboard | 3373 mm ( 133 " ) |
| UNDERLIFT SPECIFICATIONS | |
| Tow Rating | 36 . 2 ton ( 80 , 000 lbs ) |
| Retracted capacity on forks | 24 . 9 ton ( 55 , 000 lbs ) |
| Retracted distance to the forks | 1514 mm ( 60 " ) / 1701 mm ( 67 " ) |
| Extended capacity on forks | 7 . 2 ton ( 16 , 000 lbs ) |
| Extended distance to the forks | 2936 mm ( 116 " ) / 3657 mm ( 144 " ) |
| Tilt angles | - 6 ° |
| CHASSIS REQUIREMENTS | |
| FA axle ( s ) weight ( min ) | 6 ton ( 13 , 200 lbs ) |
| RA axle(s) weight (min) | 2 x 9 ton ( 20 , 000 lbs ) |
| Recomended Tire size | R22 . 5 |
| Clear CA | 4114 mm ( 162 " ) |
| Recomended GVW | 24 ton ( 53 , 200 lbs ) |
Standard Features
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
- 4114 mm ( 162 " ) Cab to centre of tandem steel body
- Frame fork holders
- Frame fork racks
- Chain racks
- 4 sets of frame forks
Options :
- Wireless remote control
- 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
- Custom length tunnel box
- Extra frame forks
- Wheel lift receivers for single / double tires
- Full recovery tool package
- Custom storage system
- Aluminum / Composite body
- European body style
- Gravel guard undercoating finish
- Front push bumper
- XP , X - shape side puller
- Chrome hand rails
- A - arm style side winches
- In cab controls
- European style low under lift
- Full size LED light bar
- LED - working lights, strobe lights , lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training

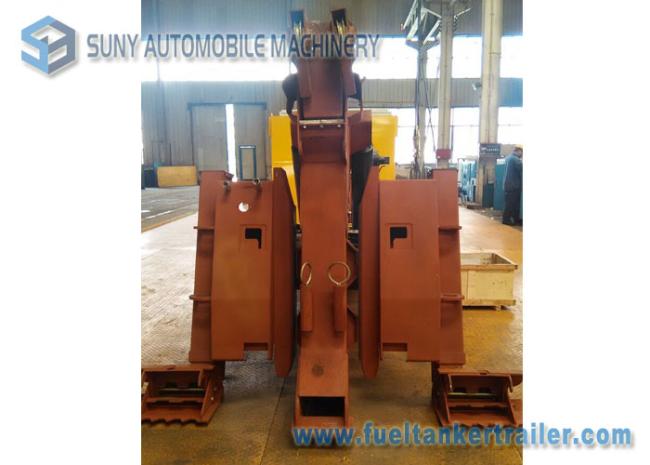

More Pictures :
