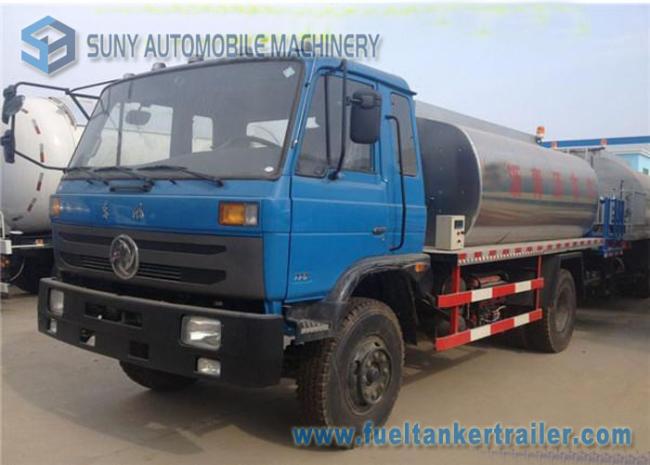

Dongfeng Asphalt Tanker Trailer 7000 L -8000 L 190hp 3950 mm ISB190 40
Dongfeng 2 Axles 7000 L -8000 L Asphalt Distributor Truck 190hp
Description & application:
1-It is easy to operate by our reasonable desgin. In addition, steady and reliable quality ensure the average distribution of the Asphalt.
2-It is for asphalt distribution in the road construction.
3-The performance of the truck can achieve to top level of the world. It can work under bad condition.
Competitive Advantage:
1- strict quality control ---- stable quality for each truck
2- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
3- competitive price ----- based on the same product, we believe our price is most competitive
4- best service ----- we cherish each customer and opportunity so we provide best service.
Dongfeng 2 Axles 7000 L -8000 L Asphalt Distributor Truck 190hp
| Vehicle Description | |||||
| Vehicle model | Asphalt Distributor | Overall dimensions (mm) | 7760X2500X2880 | ||
| GVW (kg) | Appro×16000 | Fact loading capacity (L) | 8000 | ||
| Mass in working order (kg) | Appro×8495 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Chassis Model | EQ1160GKJ1 | ||||
| Cab | Standard cabin with Left hand drive | ||||
| Color | Optional | ||||
| Allowable person in cab | 3 | ||||
| Wheel base (mm) | 3950 | ||||
| Front/Rear track base (mm) | 1810/1810 | ||||
| Front/Rear overhang (mm) | 1250/1900 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 5995 | |||
| Rear axle | 10000 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Full air | ||||
| Electric system | 24V | ||||
| Transmission | Mechanical gear box 5 speeds + one rear | ||||
| Spring plate | 9/10+8 | ||||
| Tire specification | 10.00-20, | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine manufacture | Dongfeng Cummins | ||||
| Engine model | ISB190 40 | ||||
| Emission standard | Euro 4 | ||||
| Exhaust/output | 5900 | ||||
| Horse power | 190 | ||||
| Up-parts Description | |||||
| Asphalt tank Outline Dimension (mm) | 3750X2350X1550 | ||||
| Asphalt tank Inner Dimension(mm) | 3650X2250X1450 | ||||
| Insulating layer thickness (mm) | 50 | ||||
| Asphalt tank Total Volume(L) | 8000-9000L | ||||
| Hydraulic pump | CBQ550-L | ||||
| Proportional valve | Taiwan EFBG-03-160-HF | ||||
| Asphalt pump | QGB680 | ||||
| Hydraulic motor for asphalt pump | 05-110-BD31 | ||||
| Heating System | Italian burner Riello | ||||
| Heat-transfer oil pump | 25-25-160 | ||||
| Control System | SIEMENS | ||||
| Generator | 5.5KW gasoline engine generator | ||||
| Number of nozzle | 30-39 | ||||
| Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||||
| Spray width(m) | 4.5-6 | ||||
| Spray amount(L/m2) | 0.2-2 | ||||
| Working Condition: | 1,Altitude: 0-4500m | ||||
| 2,Temperature: -350C~+450C | |||||
| 3,Relative humidity: 80% | |||||
| 4,Wind force: ≤8 degree | |||||
