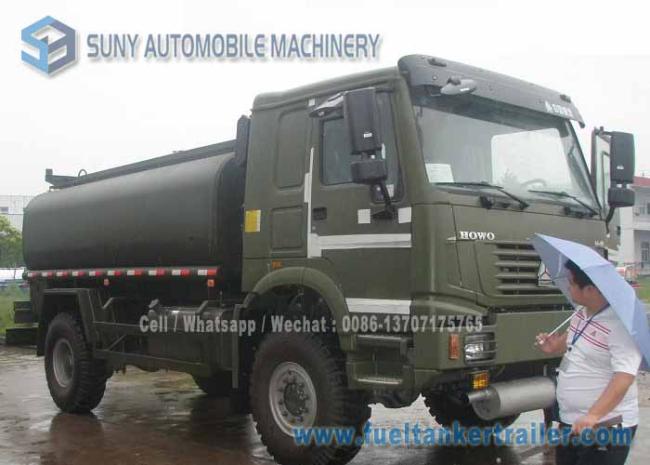

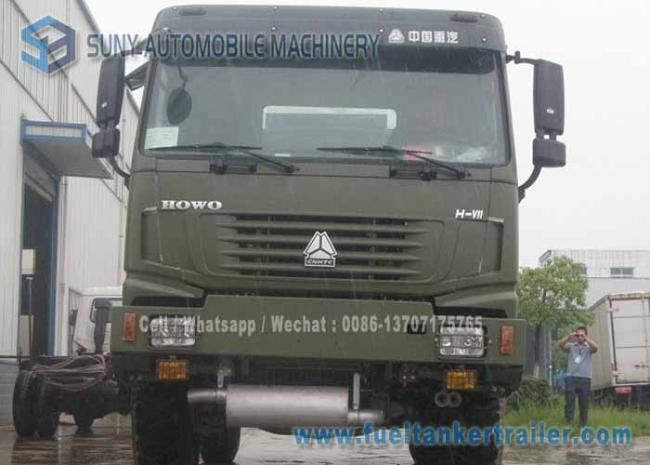

SINOTRUK HOWO 4X4 Chemical Tanker Truck 12000 L Oil Tanker All Wheel Drive
All Wheel Drive SINOTRUK HOWO 4X4 Fuel Tank Truck 12000 L Oil Tanker
Description:
The SUNY 4X4 oil tank truck, Tank and frame opting mild steel, SS304, AA5083/5454 aluminum, material.
Our factories are main fuel tanker turck manufacturer, specialized in making customized fuel tank transporter, oil tank truck, chemical tanker truck.
Divided by chassis brand: Howo serials fuel tank truck, Benz serials fuel tank truck, Sinotruck serials fuel tank truck, ISUZU serials fuel tank truck, JAC serials fuel tank truck, CAMC serials fuel tank truck, Changan fuel tank truck, Wuling fuel tank truck, Dongfeng serials fuel tank truck, Jiefang serials fuel tank truck, Auman serials fuel tank truck, Shaanxi auto serials fuel tank truck, Steyr serials fuel tank truck.
Competitive Advantage:
Gauge: self-suction pump, gear pump, chemical agent pump, numeral control refueler, the funtion for loading and discharge through are not throught gauge are available. Rear tank has 2-3 discharge vent.
Divided by gross weight: Mini fuel tank truck, light fuel tank truck, middle sizes fuel tank truck, heavy duty fuel tank truc
Speciality: tank body can be divided into several compartments with wave resistant board inside to reduce liquid shock and increase tank body strength and stability.
k.
Divided by wheel:single axle fuel tank truck, double axles fuel tank truck, 4X4 fuel tank truck, 8X4 fuel tank truck, fuel tank semi-trailer.
All Wheel Drive SINOTRUK HOWO 4X4 Fuel Tank Truck 12000 L Oil Tanker
| Fuel Tank Truck Model | SY5167GYY SINOTRUCK HOWO 4x4 fuel tanker truck | |
| Cabin / Passenger Capacity |
One and half row Seat,HW76 cab, tiltable, without air conditioner (opting), 2+1 passenger. Opting narrow cabin HW70 |
|
| Chassis | Model | ZZ2167M4327 |
| Overall dimensions | 8500*2496*3340 mm | |
| G.V.W | 16000 kg | |
| Net weight | 8120 kg | |
| Design load | 15000 kg | |
| Drive type | 4X4 | |
| Suspension F/R | 1085/2125 mm | |
| Wheelbase | 4300 mm | |
| Number of axles | 2 | |
| Axle-load | 6000/10000 kg (one rear drive axle ) | |
| Approach/Departure Angle | 31/15° | |
| Number of Spring leafs | 9/12 | |
| TrackF/R | 2041/1830 mm | |

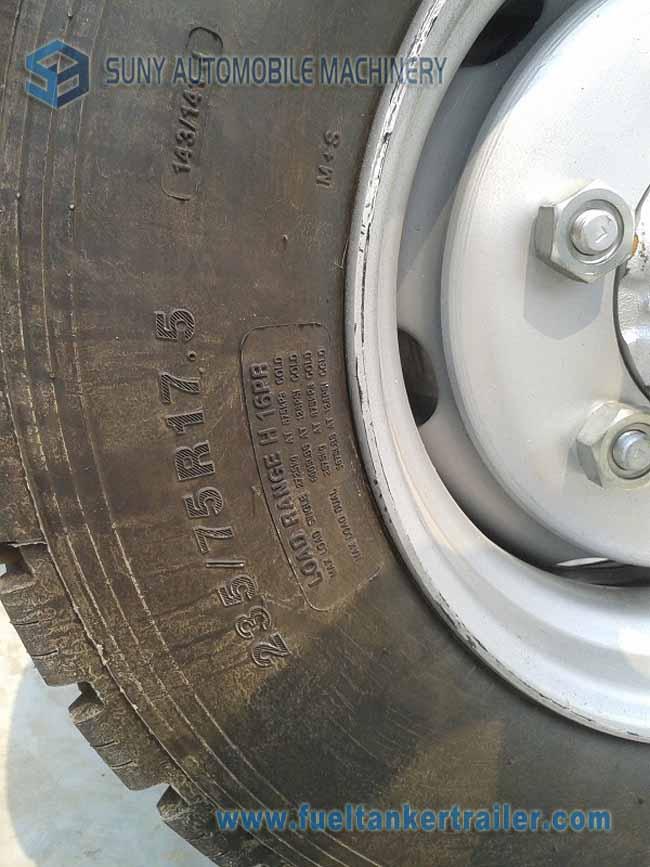

| Tire ( No. & specification) | 11.00-20, 6pcs+1pc (opting vacuum tire or radial tire, off road tire) | |
| Max speed (Km/h) | ≥ 100 km/h | |
| Brake system | Pneumatic braking | |
| Steering | ZF8098 Steering | |
| Transmission | HW15710, Mechanical 10 forward + 2 reverse | |
| Engine | Engine model | WD615.62 (EURO 2 emission) optional EGR or EURO 3 |
| Type of fuel | diesel | |
| Power | 196kw ( 266 hp ) optional 290 hp | |
| Exhaust | 9726 ml | |
| Fuel Tank | Tank capacity | 12000 Liters = 12 m3 |
| Tank shape | Oval shape. | |
| Fuel tanker size | 4900*2300*1400mm (12 m3) | |
| Tank material | Mild steel / stainless steel / Aluminum alloy | |
| Standard equipment |
With oil pump, oil loading and discharging system. Equipment opting China standard or EURO or US standard..The tank could be separated several compartment. Also could modify in refuel or transport fuel tank truck. |
|
