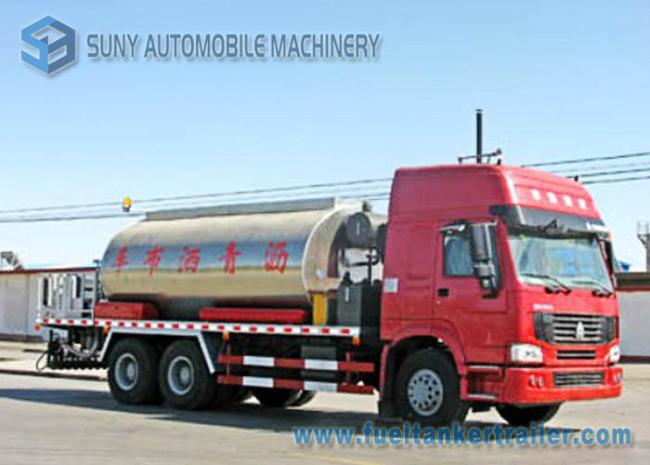

Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp
Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab
Description & application:
1-It is for asphalt distribution for the road construction program.
2-The performance of the truck can achieve to top level of the world. It can work in worse condition.
3-It is very easily to operate with reasonable desgin. And steady and reliable quality ensure the average distribution of the Asphalt.
Competitive Advantage:
1- strong R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different customers’ demand.
2- competitive price ----- based on same product, our price is most competitive
3- strict quality control ---- stable quality for each truck
4- best service ----- we cherish each customer and opportunity.
Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab
| 【TECHNICAL SPECIFICATION】 | ||||||||
| G.V.W(Kg) | 25000 | TANK CAPACITY(m3) | 10.5 | |||||
| RATED LOAD(Kg) | 9000 | OVERALL DEMENSIONS(mm) | 10100×2500×3563,3420 | |||||
| CURB WEIGHT(Kg) | 15870 | ALLOWABLE PASSERGERS IN CAB | 2 | |||||
| APPROACH/DEPARTURE ANGLE(°) | 16/10 | FRONT/REAR OVERHANG(mm) | 1500/2650,1500/2625 | |||||
| NO. OF AXLES | 3 | WHEEL BASE(mm) | 4600+1350,4575+1400 | |||||
| AXLES CAPACITY(Kg) | 7000/18000 | MAX. SPEED(Km/h) | 90 | |||||
| HYDRANLIC PUMP | CBQ563-L | |||||||
| PROPORTIONAL VALVE | EFBG-03-160-HF(TAIWAN) | ASPHALT PUMP | QGB950 | |||||
| BURNER | RIELLO | HEAT TRANSFTER OIL PUMP | 40-25-160 | |||||
| GENERATOR | 5.5KW | |||||||
| OTHERS |
1-Transport medium is liquid asphalt with density 900KGS/M3. 2-Elliptical tank dimensions(length/major axis/minor axis)(mm)::4500/2100/1600 3-Thickness of tank thermal insulation: 100mm 4-The cab can be chosen by different chassis. 5-Protective material: carbon steel Q235A. 6-Connection way: welding connection. |
|||||||
| 【CHASSIS SPECIFICATION】 | ||||||||
| CHASSIS MODEL | ZZ1257M4647C | CHASSIS TYPE | For truck(class 2) | |||||
| BRAND | HOWO | MANUFACTURER | Sinotruk group jinan truck co., LTD | |||||
| DEMENSIONS(mm) | 9895×2496×2958,3563 | NO. OF TYRES | 10 | |||||
| APPROACH/DEPARTURE ANGLE(°) | 16/18 | TYRE SPECIFICATIONS | 11.00-20,12.00-20 16PR11.00R20 16PR,12.00R20 14PR | |||||
| NO. OF SPRING PLATE | 10/12,4/12,10/- | FRONT TRACK BASE(mm) | 2022,2041 | |||||
| FUEL TYPE | Diesel | REAR TRACK BASE(mm) | 1830/1830 | |||||
| EMISSION STANDARD | GB17691-2005 GB Ⅲ,GB3847-2005 | |||||||
| ENGINE TYPE | ENGINE MANUFACTURER | DISPLACEMENT(ml) | POWER(Kw) | |||||
| WD615.97E | Sinotruk group co., LTD | 9726 | 221 | |||||
