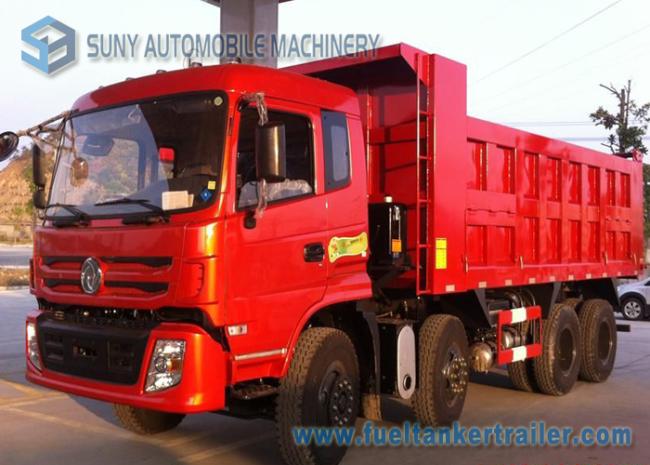

40 Ton 50 Ton 60 Ton Dongfeng Heavy Duty Dump Truck 8*4 Rubbish Collection Truck 4 Axles 340 Hp
40 Ton 50 Ton 60 Ton Dongfeng 8*4 Rubbish Collection Truck 4 Axles 340 Hp
Description&Applications:
Dump garbage dump truck is a kind of urban sanitation special vehicle, which is used for highly collecting,transporting and unloading garbage----it also can avoid secondary pollution---- leaking during the collecting and transiting process.It is the ideal urban sanitation equipment. It can carry big and heavy garbage such as construction garbage and etc,
Competitive Advantage:
1- competitive price-----based on same product, our price is most competitive
2- strict quality control----stable quality for each truck
3- powful R & D capabilities------we can design and produce the truck according to different trash cans of different countries so that it can be fit for the different countries’ demand.
4- best service-----we cherish each customer and opportunity.
Specifications:
Dongfeng 8*4 40 Ton 50 Ton 60 Ton Garbage Container Dump Truck 4 Axles 340 Hp
| Vehicle Description | |||
| Type | 8*4Dump truck | Overall Dimensions(mm) | 10990*2500*3450 |
| GVW(kg) | 31000 | Mass in working order(kg) | 15005 |
| Design Loading Weight(kg) | 15800 | Max speed(Km/h) | 80 |
| Chassis Description | |||
| Chassis Model | DFL3310A13 | Number of axles | 4 |
| Cab | Dongfeng | Allowable Passengers In Cab | 2,3 |
| Wheel base(mm) | 1850+4200+1350 | F/R track base(mm) | 2040/1850 |
| F/R overhang(mm) | 1500/2090 | Approach/Departure angle(°) | 30/20 |
| Spring plate | 9/9/13 | F/R axle-load | 6500/6500/18000 |
| Tire specification | 11.00-20,11.00R20 | Tire quantity | 12+1 |
| Air conditioner | optional | Type of fuel | diesel |
| Braking system | Air braking | Electric system | 24V |
| Traction system | 8*4 | Operation control system | Steering Wheel |
| Engine Description | |||
| Engine model | Dci340-30 | Emission standard | Euro 3 |
| Exhaust/output | 11120 | Horse power | 340 |
| Up-parts Description | |||
| Standard equipment |
Equipped with dustbin, hydraulic system and operating system. Pressure is large, operation is convenient and security is dependable. |
||
| Production | 5-7days | ||
| Warranty | 12 months or 30,000km | ||
