Forland 90hp LHD RHD Road Cleaning Truck Four Brushes Suction Sweeper Vehicle 2.5M3 Mini Street Sweeper Truck For Factor
Description & Applications:
RHD LHD Forland mini road Sweeper truck as one of the sanitation equipment, it's a new type of high efficiency sweeping equipment , with the functions of garbage collection and transportation. It is 4x2 drive type 90 hp brushes sweeper suction working type street sweeper truck
2500L road sweeper truck ,Forland RHD / LHD chassis , 90hp engine , 500L water tank , 2000L garbage tank , working speed is 3-20 kw/h , sweeping capacity is 45000-62500M2/h.
Power transmit system:Road sweeper truck have an auxiliary engine which can offer power for fan and hydraulic oil pump.Fan supply suction power for the suction system ,hydraulic oil pump complete the lift of van box and switching of rear door.
Suction system: the operating system of road sweeping truck, rear dust absorption plate absorb the rubbish on the ground.The height can be adjust according to requirement.
Hydraulic system:hydraulic oil pump,hydraulic motor,hydraulic cylinder,overflow valve,electromagnetic valve, throttle valve,hydraulic valve,hand valve,connect pipe etc.
Competitive Advantage:
1. Factory direct sales, fast delivery
2. High Quality, good performance
3. 12 months warranty, main beam whole life time grantee
4. sale truck for 10 years.
5. ISO, CCC, SGS, BV certificates
Technical Specification :
| Overall | model | Forland sweeper truck |
| dimensions | 5300*1775*2250mm | |
| total weight | 4294kg | |
| curb weight | 3550kg | |
| Chassis | brand | Forland –RHD / LHD |
| cabin | Forland | |
| wheelbase | 2600mm | |
| engine power | 90hp | |
| tyre | 6.00R15 | |
| upper structure | auxiliary engine | Yuchai 56hp |
| water tank | 0.5m³ | |
| garbage tank | 2m³ | |
| cleaning width | 2.5m | |
| working speed | 3-25km/h | |
| sweeping capacity | 45000-62500㎡/h | |
| garbage tank lifting angle | 45° |

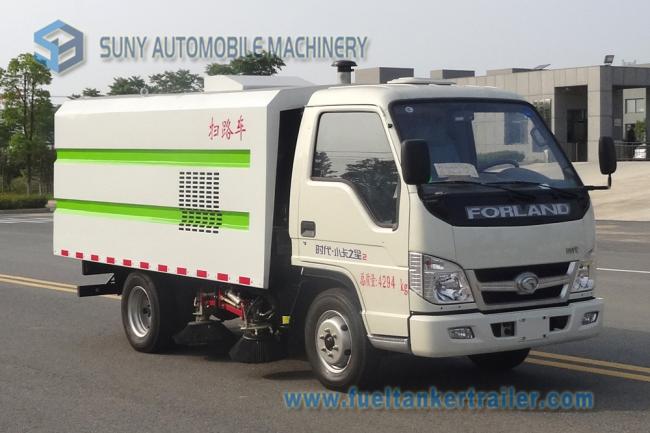

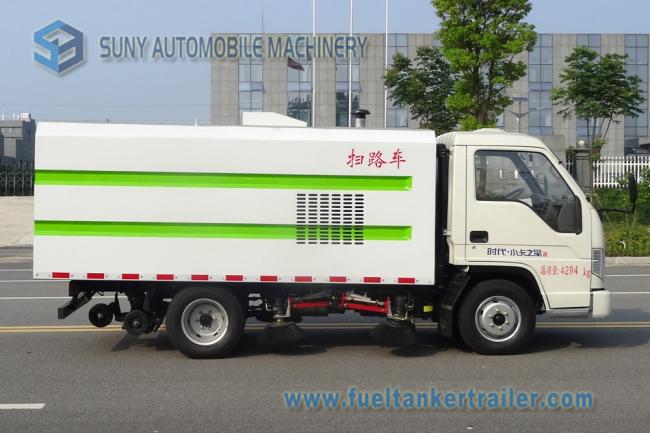

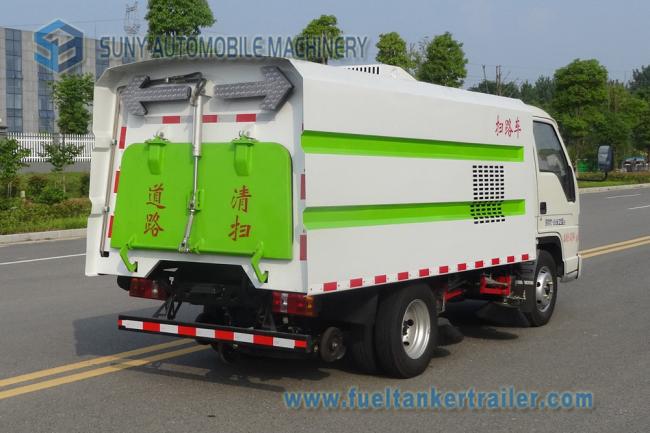

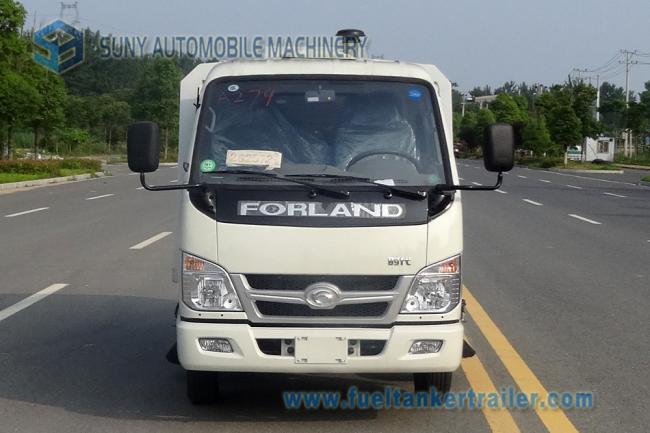

More Details Pictures Show :
