6000L Road Sweeping Vehicle / Street Sweeper Vacuum Truck With Sprinkler
6000L Road Washing Sweeper Truck Operation In Cab With Sprinkler
Product Description:
This truck for road sweeper and washing road. save money and time than employ worker.
The surface of the external air domain was treated as the pressure inlet, and its pressure was set as the atmosphere, The outlet of the model was defined as pressure outlet. There are two kinds of walls, the static wall, which is the bottom part of the pickup head, and the moving walls, which are the rest parts of pickup head shells. Oe these walls, the no-slip boundary conditions were assumed by defaults, and the translational speed of pickup head was applied as the speed of moving walls.
1. Parameter
|
Products Technical Specification |
||
|
Type |
road Washing sweeper truck |
|
|
Vehicle Description |
||
|
Overall dimensions(mm) |
6700*2200*2900 |
|
|
G.V.W (kg) |
7000 |
|
|
Curb weight(kg) |
4500 |
|
|
Max speed (Km/h) |
90 |
|
|
Engine Description |
||
|
Engine model |
CY4102 |
|
|
Engine Type |
4 cylinders, straight in-line, |
|
|
Maximum power |
95hp |
|
|
Displacement (lit) |
|
|
|
Chassis Description |
||
|
Chassis model |
EQ1070 |
|
|
Wheel base(mm) |
3300 |
|
|
F/R track base(mm) |
1880/1860 |
|
|
F/R overhang(mm) |
1480/2320 |
|
|
Approach/Departure angle(°) |
20/15 |
|
|
Spring plate |
8/10+8 |
|
|
Front / rear axle (T) |
6/10/10 |
|
|
Driving Type |
4*2,left hand drive or right hand drive |
|
|
Tyre&Quantity |
6.50R15&6+1 |
|
|
Up-parts Description |
||
|
Max sweeping width(mm) |
3000 |
|
|
Sweep efficient |
More than 95% |
|
|
Sweep speed(Km/h) |
3-20 |
|
|
Hydraulic pressure(Mpa) |
10 |
|
|
water tank capacity(M3) |
13 |
|
|
Dustbin capacity(m3) |
9 |
|
|
Max operating capacity |
70000 square meters per hour |
|
|
The biggest diameter of suction granularity(mm) |
110 |
|

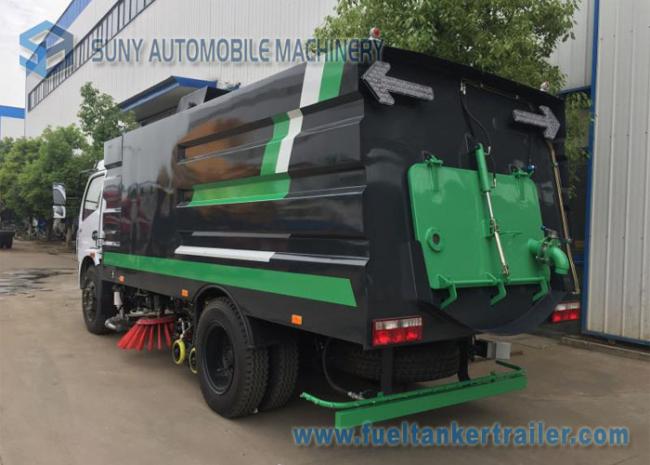

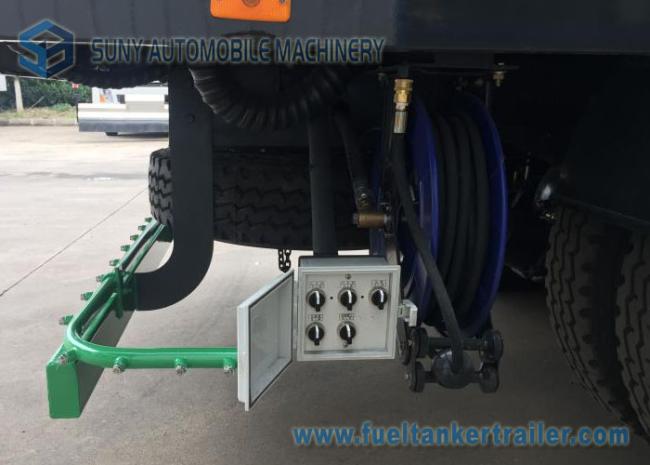

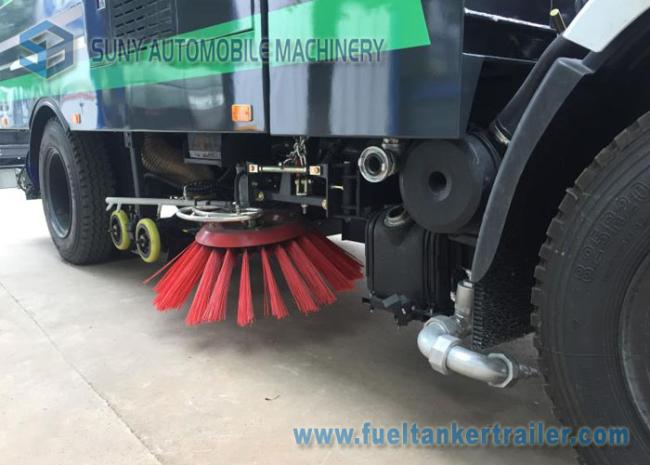

2.Pictures
