Dongfeng 15000L 10 Wheel Vacuum Tank Truck 270hp High Pressure Cleaning And Sewage Suction

Price Negotiable
Price: USD 34500-39200 / Set
MOQ: 1 unit
Delivery Time: 15-20 days after receiving deposits
Brand: SUNY
Product Description

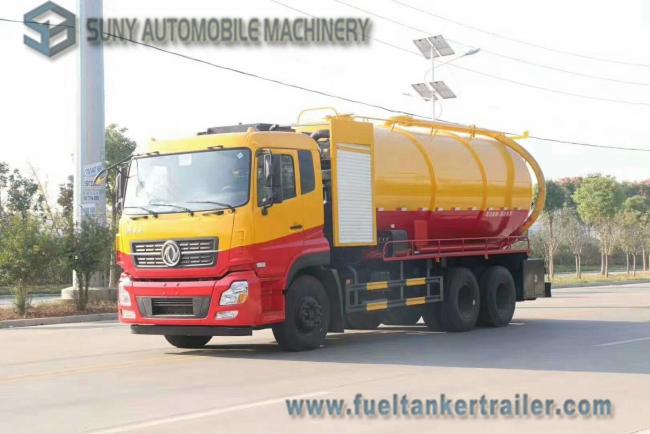

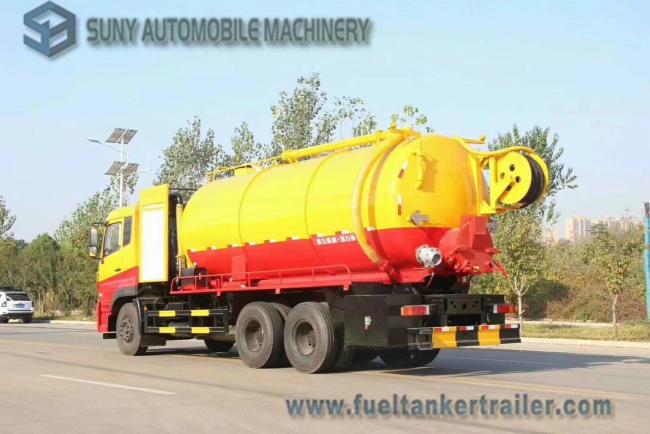

dongfeng 15000L high pressure cleaning and sewage suction tanker truck for sale



Description:

This vacuum suction sewage truck is suitable for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment. It is necessary tool for city sanitation department, waste processing company, big factory, it can help to clean the sewer underground, clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.



Applications:

Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.



Competitive Advantage:



1. The domestic mature chassis, the use of safe and reliable

2. The strict the whole pickling, preservative treatment, and the anticorrosion coating non-toxic water warehouse paint, has the good put embroidered performance

3. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min

4. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

5. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

6. The diesel engine ( air compressor unit ), providing compressed air.



Specifications:

Item

Descriptions

Specifications and Types

Vehicle

Brand

DONGFENG

Overall Dimensions L*W*H

9800*2550*3600mm

Weights

GVW.

25000 kg

Curb Weight

12400 kg

Rated Payload

12470 kg

Chassis

Chassis Brand

Dongfeng

Drive Type

6x4

Steering

LHD or RHD

Engine

Brand

Cummins  engine

Power

ISD270 HP

Emission Level

EURO 2 or Euro 3 or EURO 4

Performance

Max. Speed

90 km/h

Wheel base

4350  mm

Tire Specifications

11.00R20

No. of Tire

10 pcs (1 spare tire included )

Cab

Cab Capacity

D910, one sleeper,with A/C

Body/Superstructure

Tank

Capacity

15-18 m³

Material

5mm or  6mm high quality carbon steel

Vacuum pump

China famous vacuum pump

Vacuum rate

99% topically

Suction head

6 m

Rotation speed

500 rpm, low noise, high efficiency

Basic
Equipment

Install vacuum pumps and hydraulic systems driven by engine through PTO.

One multi-way valve, pressure gauges, water-gas separator, oil-gas separator,

hydraulic oil tank, a level inspection window, hand washing tank and a piece

of 6m suction hose

Paint

 Tank color is according to client’s requirements.

Optional Equipment

Italy or Spain vacuum pumps

Stainless steel

Anti-rust coating inside tank
