Fire Resistant B0 B1 Rubber Sponge Sheet with 40-50kgs/m3 Density and 10-30mm Thickness for Insulation
Price:
negotiation
MOQ:
30CBM/1x20' container
Delivery Time:
10-20 working days after received your payment
Brand:
3A Rubber
Product Description

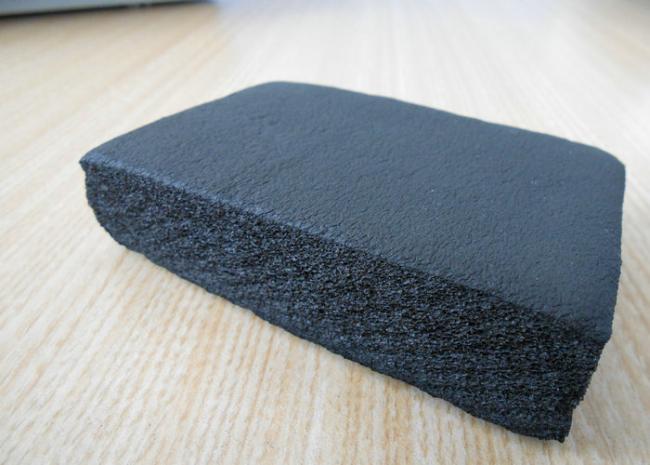

Armaflex Insulation Equivalent Insulation Rubber Sponge Sheet For Air Condition
Product Overview
Rubber foam insulation sheet made from rubber-plastic sponge material with low thermal conductivity and full-closed cell structure. This material provides excellent continuous heat insulation and is completely isolated from vapor, offering water-proof, anti-condensation properties with long lifetime.
Packaging & Delivery
| Packaging Details | Rubber foam insulation roll PE bag packing, 250rolls/20FCL; 500rolls/40FCL |
|---|---|
| Delivery Detail | Within 15 days after order confirmation |
Key Characteristics
- Closed-cell Structure
- Low and Stable Thermal Conductivity
- Low Water Absorption Rate
- Good Fireproof and Soundproof Performance
- Good Aging Resistance Performance
- Simple and Easy Installation
- Environmental friendly & Improved IAQ
Applications
Used to retard heat transmission and control condensation from chilled-water and refrigeration systems. Also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping.
Ideal for applications in:
- Ductwork
- Dual temperature and low pressure steam lines
- Process piping
- Air-conditioner, including hot gas piping
- Refrigeration unit and equipment for air-conditioning system
- Frozen water pipe
- Condensing water pipe
- Air duct and hot water pipeline
Technical Specifications
| Property | Unit | Value |
|---|---|---|
| Density range | kg/m³ | 50~100 |
| Flammability | - | B1 |
| Oxygen index | % | ≥33 |
| Thermal conductivity (Average temperature) | ||
| -20°C | w(m.k) | ≤0.032 |
| 0°C | w(m.k) | ≤0.035 |
| 40°C | w(m.k) | ≤0.037 |
| Moisture resistance factor | - | ≥5x10³ |
| Water absorption ratio in vacuum | % | ≤10 |
| Dimension stability (105°C ±3°C, 7d) | - | ≤10 |
| Ozone resistance (200h) | % | Good, not cracking |
| Compress resilience ratio (Compression ratio 50%, Compression time 72h) | % | ≥70 |
| Aging resistance | - | 150 hours, slight wrinkles, no cracks, holes or distortion |
| Dimensions | - | Pipes/tubes in 1.83 m or 1.85 m length Sheet in rolls 1 m or 2 m width |
Distinctive Advantages
- Closed structure effectively prevents thermal conduction
- Thermal conductivity 0.034W/m•k at 0°C
- High heat emission coefficient of surface (up to 9W/m2k)
- Excellent anti-steam permeated ability with moisture resistance 5000
- Excellent fireproofing with oxygen index above 32
- Easy installation with no need for additional accessories
- Free from CFC, HFC, HCFC, formaldehyde, dust or fiber
Product Specifications
Rubber plastic board (1m wide)
| Thickness | Length per roll |
|---|---|
| 10mm | 20m |
| 13mm | 20m |
| 15mm | 20m |
| 18mm | 10m |
| 20mm | 10m |
| 23mm | 10m |
| 25mm | 10m |
| 28mm | 10m |
| 30mm | 10m |
