Clear Heat Shrink Pure PTFE 100% Virgin PTFE Tube Self - Lubricating
Price:
negotiation
MOQ:
1roll
Delivery Time:
10 working days after received your payment
Brand:
3A Rubber
Product Description

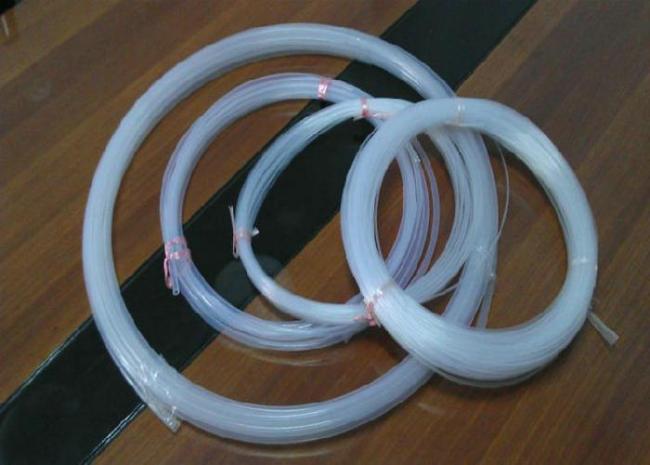

high quality transparent and white heat shrink ptfe tubing / pure PTFE 100% virgin ptfe tube
Description
PTFE hose or PTFE tubing, short for polytetrafluoroethylene tubing, is made of superior polytetrafluoroethylene resin through special extrusion and sintering process. This product is highly electrical insulating, highly flame retardant, self-lubricating and highly resistant to super high temperature, chemical reagents and almost all oil and other chemicals. It finds extensive applications in automotive, war industry and aerospace markets.
|
Item |
ID(inner diameter) (mm) |
Tolerance of ID (mm) |
Wall thickness (mm) |
Tolerance of wall thickness (mm) |
Length (mm) |
|
SFG-1 |
0.5, 0.6, 0.7, 0.8, 0.9, 1.0 |
±0.05 |
0.2 |
±0.05 |
≥200 |
|
0.3 |
|||||
|
1.2, 1.4, 1.5, 1.6, 1.8 |
±0.08 |
0.2 |
±0.05 |
||
|
0.3 |
|||||
|
0.4 |
±0.08 |
||||
|
2, 2.2, 2.4, 2.5, 2.6, 2.8, 3.0, 3.2, 3.4, 3.5, 3.6, 3.8, 4.0 |
±0.10 |
0.2 |
±0.05 |
||
|
0.3 |
|||||
|
0.4 |
±0.08 |
||||
|
0.5 |
±0.10 |
||||
|
1.0 |
±0.15 |
||||
|
SFG-2 |
5, 6, 7, 8 |
±0.10 |
0.5 |
±0.08 |
According to the customer's demand |
|
1.0 |
±0.10 |
||||
|
1.5 |
|||||
|
2.0 |
|||||
|
9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 25 |
±0.10~±0.20 |
1.0 |
±0.10~±0.15 |
≥200 |
|
|
1.5 |
|||||
|
2.0 |
|||||
|
≥25 |
±0.25 |
1.5~2.0 |
±0.20 |
Note: The information above is just for your reference. The final products depend on the customer's technical requirements.
