ROHS Standard Nylon Plastic Rod with 120°C Working Temperature, Ø10-300mm Outside Diameter and 300-500mm Length
Price:
neogation
MOQ:
100kgs
Delivery Time:
10 working days after recieved your payment
Brand:
3Arubber
Product Description

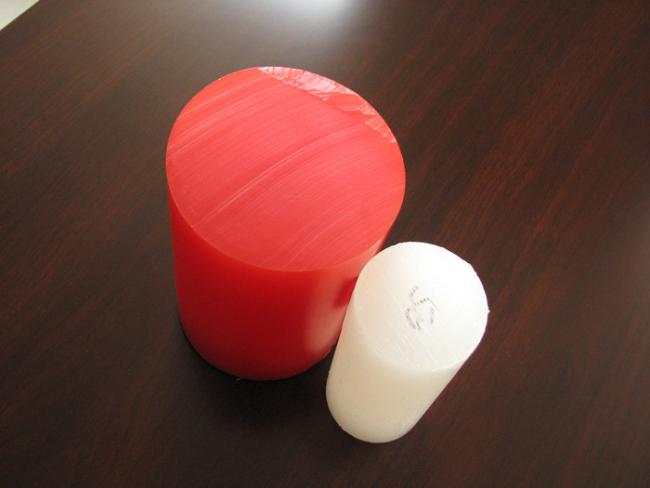

ROHS Standard Nylon Plastic Rod Ø10-300mm Outside Diameter 300-500mm Length
High-performance polyurethane rods, bars, and plastic components manufactured to ROHS standards for industrial applications.
Product Overview
Manufactured using high-quality polyester or polyether materials through mold casting processes, these polyurethane rods deliver exceptional performance characteristics including chemical resistance, impregnant resistance, ozone resistance, radiation resistance, aging resistance, and hydrolysis resistance.
Key Features
- Superior mechanical properties including high tensile strength and tear resistance
- Excellent impact resistance and bending strength with low compression set
- Abrasion resistance 5 times greater than natural rubber
- Oil resistance 3-5 times superior to NBR rubber
- High elasticity (65%) with outstanding compression resistance at elevated temperatures
- Wide hardness range: 60-95 Shore A
- Excellent adhesion to metal substrates
- Advanced polymer material with rapid development applications
Technical Specifications
| Material | 100% virgin polyether or polyester |
|---|---|
| Available Colors | Yellow, brown, black, white, red, blue, and custom options |
| Surface Finish | Smooth |
| Tensile Strength | 25-55 MPa |
| Elasticity Impact | >25% |
| Hardness | 60-95 Shore A |
| Elongation | 400%-650% |
| Density | 1.12-1.25 g/cm³ |
| Tear Strength | 35-155 KN/m |
| Akron Abrasion Loss | <0.05 cm³/1.61 km |
| Compression Set (22h * 70°C) | <10% |
| Working Temperature | Up to 120°C |
| Diameter Range | Ø 10-300 mm |
| Length Range | 300-500 mm |
Industrial Applications
Suitable for mining, oil field operations, chemical processing, printing, punching, paper manufacturing, footwear production, spinning, and automotive industries.
Important: When requesting a quotation, please specify material type, color preference, hardness requirements, dimensional specifications, and quantity needed.
