M1019A Module M1657B water trap PN: PWM-CA20-008-30 for compatible water trap

The **M1019A Module** and **M1657B Water Trap** are components used in ** IntelliVue patient monitoring systems**, specifically for **capnography (CO₂ monitoring)**. These parts play a critical role in ensuring accurate and reliable CO₂ measurements, particularly in intubated or ventilated patients.

---

**Overview of the M1019A Module and M1657B Water Trap:**

**M1019A Module**:
- **Function**:
- The M1019A is a **capnography module** that measures end-tidal CO₂ (EtCO₂) and respiratory rate.
- It is used in conjunction with the IntelliVue monitoring system to provide real-time CO₂ monitoring for ventilated or sedated patients.

- **Key Features**:
- Accurate and reliable CO₂ monitoring.
- Compatible with IntelliVue monitors (e.g., MP Series, MX Series).
- Supports both mainstream and sidestream capnography.

---

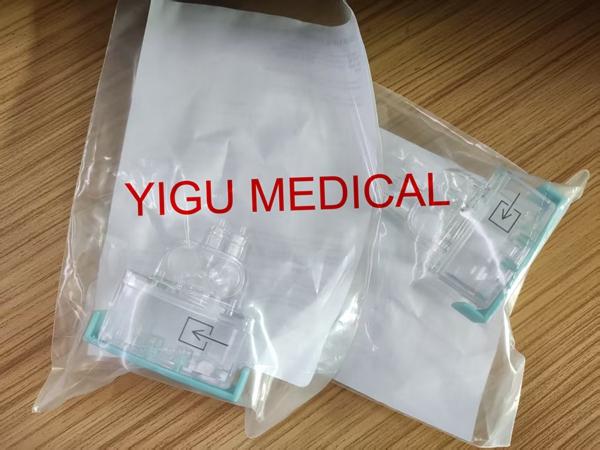

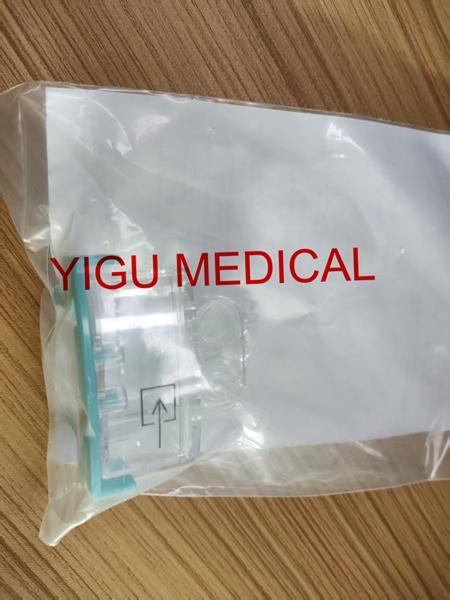

**M1657B Water Trap**:
- **Function**:
- The M1657B is a **water trap** used in sidestream capnography systems.
- It prevents moisture (e.g., condensation, saliva) from entering the sampling line, which could otherwise interfere with CO₂ measurements or damage the module.

- **Key Features**:
- Easy to install and replace.
- Transparent design allows for visual inspection of moisture accumulation.
- Compatible with IntelliVue sidestream capnography systems.

---

**Applications**:
- **Critical Care**: Monitoring CO₂ levels in intubated or ventilated patients in ICUs or operating rooms.
- **Emergency Medicine**: Assessing respiratory status in emergency or trauma situations.
- **Procedural Sedation**: Ensuring patient safety during sedation procedures.

---

**How to Use the M1019A Module and M1657B Water Trap**:
1. **Setup**:
- Connect the M1019A module to the IntelliVue monitor.
- Attach the M1657B water trap to the sidestream sampling line.

2. **Sampling Line Connection**:
- Connect the sampling line to the patient’s airway (e.g., endotracheal tube or nasal cannula).
- Ensure the water trap is positioned correctly to collect moisture.

3. **Monitoring**:
- Observe the CO₂ waveform (capnogram) and EtCO₂ values on the monitor.
- Adjust settings (e.g., alarm limits) as needed.

4. **Maintenance**:
- Regularly check the water trap for moisture accumulation and replace it when necessary.
- Clean the sampling line and replace it if clogged or damaged.

---

**Troubleshooting Common Issues**:
1. **No CO₂ Waveform or Readings**:
- Check the sampling line for blockages or disconnections.
- Ensure the water trap is not overfilled with moisture.

2. **Erratic or Inaccurate Readings**:
- Verify that the sampling line is properly connected to the patient’s airway.
- Replace the water trap if it is damaged or contaminated.

---

---
**Replacement and Maintenance Tips**:
- **Water Trap Replacement**: Replace the M1657B water trap regularly or when moisture is visible.
- **Sampling Line Inspection**: Check the sampling line for wear, cracks, or blockages.
- **Cleaning**: Follow the manufacturer’s cleaning instructions for the water trap and sampling line.
