Original Durable Easy to Use Comen C30 Patient Monitor Mainboard Motherboard in Good Condition

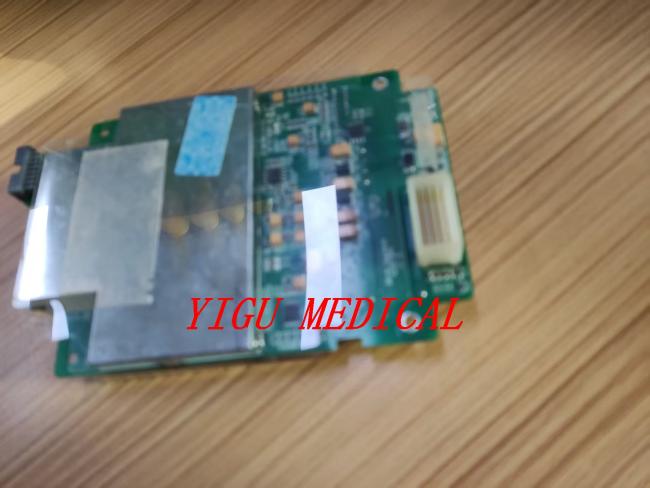

Comen C30 patient monitor Mainboard PN E257384 in good condition

Here's a comprehensive introduction to the **Comen C30 patient monitor mainboard**:
**Overview**
The Comen C30 is a compact, multi-parameter patient monitor designed for various clinical settings. Its **mainboard** (often called the **motherboard** or **system board**) is the central printed circuit board (PCB) that integrates all electronic components and facilitates communication between different modules.
**Mainboard Architecture**

**Core Functions**
1. **Central Processing Hub:**
- Integrates data from parameter modules (ECG, SpO₂, NIBP, Temp, Resp, IBP, etc.)
- Runs the operating system and monitoring software
- Manages alarms, calculations, and data storage

2. **Power Distribution & Management:**
- Converts input power (AC/DC/battery) to required voltages
- Manages battery charging and power switching
- Provides clean, regulated power to sensitive analog circuits

3. **Signal Routing & Processing:**
- Analog-to-digital conversion for physiological signals
- Digital signal processing (DSP) for waveform analysis
- Noise filtering and artifact reduction

**Hardware Components**

**Key ICs (Integrated Circuits) on Board**
- **Main Processor:** Typically an ARM Cortex-A series or similar embedded processor
- **Memory:**
- DDR3 RAM (usually 512MB-1GB)
- NAND Flash storage (4-8GB) for OS and data
- Possibly an SD card slot for expansion
- **FPGA/CPLD:** For custom logic and timing control
- **Power Management ICs:** Multiple DC-DC converters and LDO regulators
- **Communication Controllers:** CAN, USB, Ethernet, UART controllers

**Critical Sections of the Board**
1. **CPU/Processing Area:** Central processor with RAM and flash memory
2. **Analog Front-End (AFE):** ECG amplifier circuits, SpO₂ signal conditioning
3. **Power Supply Section:** Voltage regulators, battery management circuitry
4. **Interface Section:** Connectors for display, parameter modules, external ports
5. **Isolation Barrier:** Optocouplers/isolation amplifiers for patient safety

**Connectivity & Interfaces**
**External Connectors**
- **Module Ports:** For connecting parameter modules (typically proprietary connectors)
- **Display Interface:** LVDS or eDP connector for LCD panel
- **Network:** RJ45 Ethernet port
- **USB:** Usually 2-4 USB 2.0/3.0 ports
- **Serial Ports:** RS-232 for external devices (printers, ventilators)
- **Audio:** Speaker output for alarms
- **Card Reader:** For SD/memory cards
**Internal Headers**
- **Button/LED Interface:** Front panel controls and indicators
- **Battery Connector:** To internal battery pack
- **Fan Connector:** For cooling fan
- **Speaker Connector:** Internal alarm speaker
- **JTAG/DEBUG Ports:** For factory programming/testing
**System Integration**
**Parameter Module Interface**
The C30 typically uses a **modular design** where:
- Mainboard provides **backplane functionality**
- Each parameter (ECG, SpO₂, etc.) has a dedicated daughterboard
- Communication via **CAN bus** or proprietary serial protocol
**Software Architecture**
- **Operating System:** Embedded Linux or VxWorks
- **Application Layer:** Comen proprietary monitoring software
- **Boot Process:** U-Boot → Linux kernel → Application

**Technical Specifications**

**Electrical Characteristics**
- **Input Voltage:** 12-24V DC (typically 19V from power adapter)
- **Battery Voltage:** Usually 10.8-14.4V (3-cell or 4-cell Li-ion)
- **Isolation:** Patient-connected circuits have 4000V+ isolation
- **Power Consumption:** 15-40W depending on active modules

**Performance Specifications**
- **ECG Sampling:** Up to 1000 Hz per channel
- **SpO₂ Update Rate:** Typically 1-2 readings per second
- **NIBP Measurement Time:** 30-60 seconds typical
- **Data Storage:** 72+ hours of trend data

**Common Issues & Troubleshooting**
# **Frequent Failure Points**
1. **Power Section:**
- Failed DC-DC converters
- Blown fuses or protection diodes
- Battery charging circuit failures

2. **Memory/Storage Issues:**
- Corrupted flash memory
- Failed RAM chips
- SD card slot damage

3. **Interface Problems:**
- Damaged connectors from frequent module swapping
- CAN bus communication failures
- Display interface issues

**Symptoms of Mainboard Failure**
- **No Power/No Boot:** Even with good power supply
- **Intermittent Freezing/Crashing:** Especially during measurements
- **Module Recognition Issues:** Modules not detected or dropping offline
- **Display Artifacts:** Distorted waveforms or graphics
- **Battery Not Charging:** Despite good battery and power supply

**Maintenance & Service**

**Preventive Maintenance**
- **Regular Cleaning:** Dust removal (compressed air recommended)
- **Connector Inspection:** Check for bent pins or corrosion
- **Firmware Updates:** Apply manufacturer updates cautiously
- **Cooling:** Ensure ventilation and fan operation
