Factory OEM/ODM Fiber Media Converter Media Converter Gigabit
Welcome to contact our sales team and they will offer you a professional introduction about our products!

Product Overview

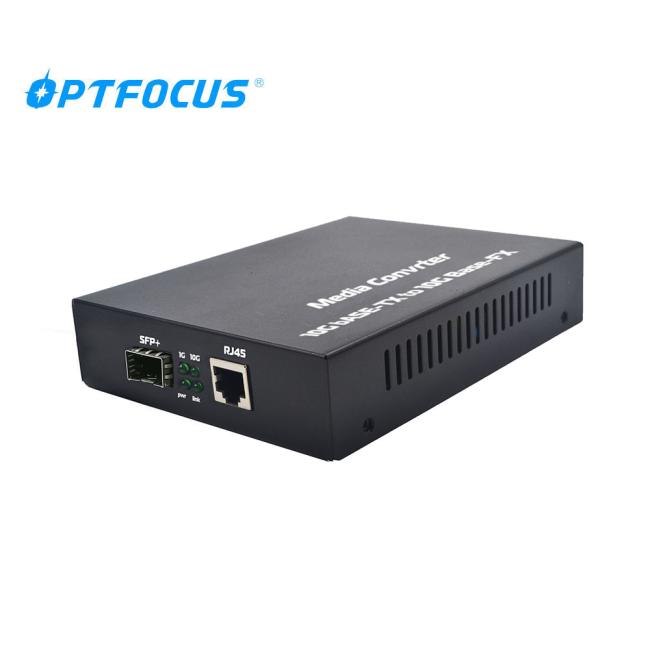

This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical

wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

• 1 Port 10G with Auto Uplink™ , 1 port SFP+
• 1G/10G Auto-negotiation , auto-MDI-MDI-X
• Comply with IEEE 802.3, IEEE 802.3u 10GBase-TX, 10GBase-FX Standard
• Auto negotiation function allows UTP port to auto select 1G or 10G and Full Duplex or Half Duplex
• Easy installation
• Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
• Data Transfer Rate:

TP: 1G/10G

FX: 10G

• Duplex mode support:

Full or half-duplex mode by Auto-Negotiation (TP)

Full or half-duplexmode by DIP-switch (FX)

• LED indicators: Power, 1G, FX Link/Act,10G
• Support hot plugging
• Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
