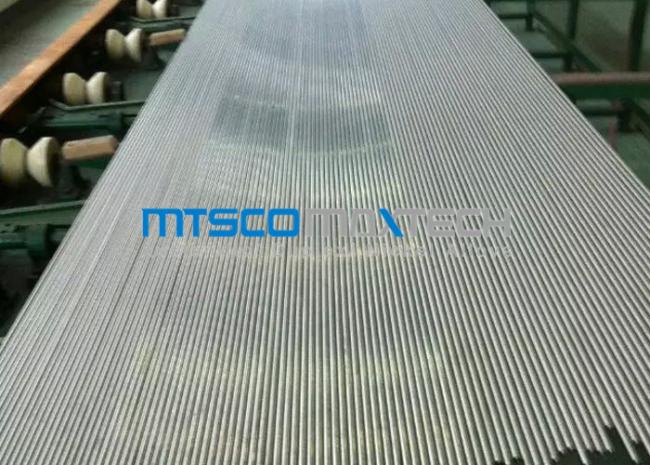

EN10216-5 TC 1 D4 / T3 Stainless Steel Instrumentation Tubing 9.53mm x 20 BWG
EN10216-5 TC 1 D4 / T3 Stainless Steel Instrument Tubing 9.53mm x 20 BWG
Applications :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) Etc
| Advantages | a) Superior surface finish |
| b) Better mechanical property | |
| c) More precise dimension | |
| d) Perfect inspection method and inspection equipment | |
| Price Item | FOB , CFR , CIF or as negotiation |
| Payment | T/T, LC or as negotiation |
| Delivery Time | 30 working days after received your deposit ( Normally according to the order quantity ) |
| Package | Iron case ; woven bag or as per customer’s requirement |
| Quality Requirement | Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable |
| Test | NTD ( Ultrasonic test , Eddy Current test ) |
| Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test ) | |
| Metal Test ( Metallographic Analysis , Impact Test - High / low temperature ) | |
| Chemical Analysis ( Photoelectric Emission Spectroscopic ) |
| Birmingham Wire Gauge BWG | |||||
| Wall Thickness | Wall Thickness | ||||
| BWG | IN | MM | BWG | IN | MM |
| 0 | 0.340 | 8.64 | 19 | 0.042 | 1.07 |
| 1 | 0.300 | 7.62 | 20 | 0.035 | 0.89 |
| 2 | 0.284 | 7.21 | 21 | 0.032 | 0.81 |
| 3 | 0.259 | 6.58 | 22 | 0.028 | 0.71 |
| 4 | 0.238 | 6.05 | 23 | 0.025 | 0.64 |
| 5 | 0.220 | 5.59 | 24 | 0.022 | 0.56 |
| 6 | 0.203 | 5.16 | 25 | 0.020 | 0.51 |
| 7 | 0.180 | 4.57 | 26 | 0.018 | 0.46 |
| 8 | 0.165 | 4.19 | 27 | 0.016 | 0.41 |
| 9 | 0.148 | 3.76 | 28 | 0.014 | 0.36 |
| 10 | 0.134 | 3.40 | 29 | 0.013 | 0.33 |
| 11 | 0.120 | 3.05 | 30 | 0.012 | 0.30 |
| 12 | 0.109 | 2.77 | 31 | 0.010 | 0.25 |
| 13 | 0.095 | 2.41 | 32 | 0.009 | 0.23 |
| 14 | 0.083 | 2.11 | 33 | 0.008 | 0.20 |
| 15 | 0.072 | 1.83 | 34 | 0.007 | 0.18 |
| 16 | 0.065 | 1.65 | 35 | 0.005 | 0.13 |
| 17 | 0.058 | 1.47 | 36 | 0.004 | 0.10 |
| 18 | 0.049 | 1.24 | |||
MTSCO instrument products are made with high quality raw material. Advanced manufacture equipments and the exquisite craft, technology, characteristic of high precise size, good quality surface, stable performace, especially for the reliable durable performance under high temperature. It is widely applied in heat exchanger and condenser tubes, gas spring and lifter tubes, shock absorber tubes, automobile motocycle tubes, hydraulic tube.High pressure and super critical pressure steam boiler and so on.
