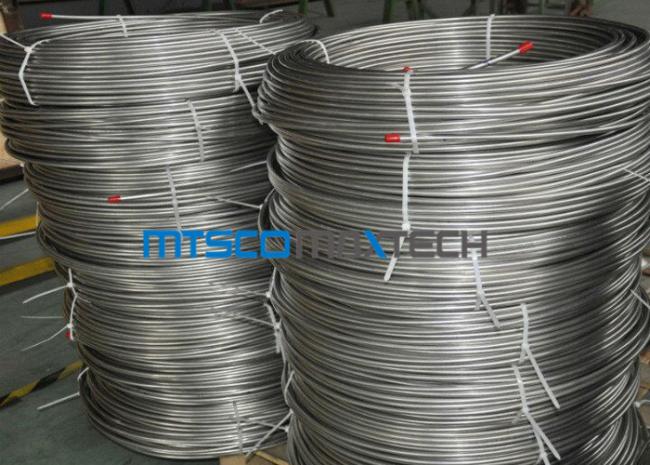

ASTM A789 1/4" S32205 Welded Chemical Control Line Corrosion Resistance
ASTM A789 1/4" S32205 Welded Chemical Control Line Corrosion Resistance
Material: TP316L, S32205, Alloy825/N08825, Alloy400/ N04400, Alloy625/ N06625
Outer Diameter: 1/4“, 3/8”,1/2“
Wall Thickness: 0.035”,0.049“,0.065”
Length : PER FT
Application : ICV remote control,
Pressure Rating : 15000 Psi
Duplex Steel Tube Chemical Composition:
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
|
S31803 2205 |
0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
|
S32750 2507 |
0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
Duplex Steel Tube Application:
a) Petroleum
b) Chemical industry
c) Instrument
d) Industrial transportation
e) Mechanical structure industry
f) Need high corrosion ability pipe's industry, such as offshore industry, etc
Inspection & Test
1 .100 % PMI , Spectro Chemical Aanlysis Test for Raw Material
2 .100 % Dimension & Visual Examination
3 . Mechanical Properties Test Include Tension Test,Flaring Test ( For Seamless tube / pipe ) / Flange Test ( For Welded Pipe & Tube ) , Hardness Test , Reversed Flattening Test
4 .100 % Hydrostatic Test or 100 % NON - DESTRUCTIVE Test ( ET or UT )
5 . Radiographic Test for Welded Pipe ( shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor )
6 . Straightness Test ( optional )
7 . Roughness Test ( optional )
8 . Intergranular Corrosion Test ( optional )
9 . Impact Test ( optional )
10 . Grain Size Determinations ( optional )
About MTSCO:
Who MTSCO IS?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
