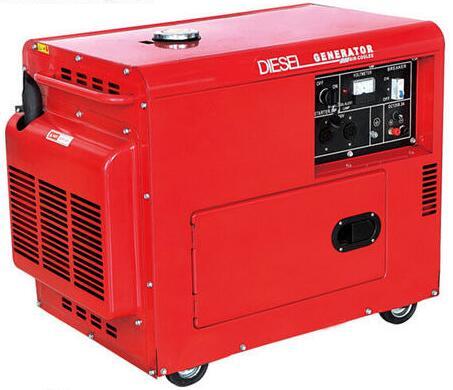

Small Silent Diesel Generator 4.2kW / 5 kW Low Fuel Consumption Single Phase Air-cooled
Small Silent Diesel Generator 4.2kW / 5 kW Low Fuel Consumption Single Phase Air-cooled
Product Description
|
Model |
Silent type |
||
|
LRB5GF |
|||
|
Generator
|
Type |
Revolving field type 2 pole generator |
|
|
Frequency (Hz) |
50 |
60 |
|
|
Cont. Output (KW) |
4.2 |
5 |
|
|
Voltage (A.C)(V) |
230 |
240 (120) |
|
|
Current (A.C)(A) |
18.3 |
20.8 (41.7) |
|
|
Engine speed (r/min) |
3000 |
3600 |
|
|
Phase |
Single phase |
||
|
Power factor (COSΦ) |
1 |
||
|
Excitation system |
Controlled constant self-excitation |
||
|
D.C output V/A |
12V/8.3A |
||
|
Operation capacity |
12 hour constant operation |
||
|
Coupling pattern |
Straight shaft coupling |
||
|
Model |
186FG(E) |
||
|
Engine
|
Type |
Direct injection vertical, 4-cycle, air-cooled diesel engine |
|
|
Displacement cc (cu.in) |
406 (24.78) |
||
|
Max. output (KW/rpm) |
6.6 |
7.35 |
|
|
Cont. output (KW/rpm) |
5.9 |
6.6 |
|
|
Starting system |
Electric start |
||
|
Governor system |
Centrifugal weight system |
||
|
Fuel |
Diesel light fuel (BS-AL or equivalent) |
||
|
Fuel tank capacity (L) |
16 |
||
|
Lube oil capacity (L) |
1.65 |
||
|
Bore×Stroke |
86×75 |
||
|
Protection system |
Low oil, warning system/Stop device (not for L-series) |
||
|
Unit
|
Noise level at 7m dB (A) |
770 |
|
|
Dimension (L×W×H) (mm) |
950×580×740 |
||
|
Dry weight (kg) |
157 |
||
