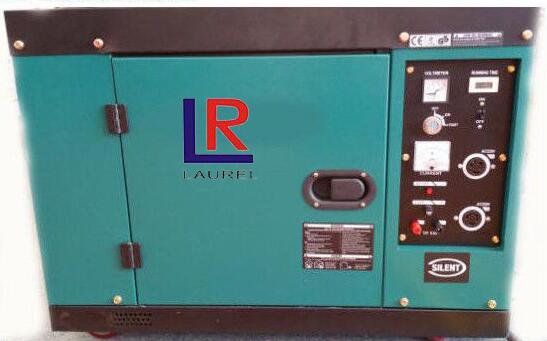

Two Open Doors Type 5kW / 5.5 kW Silent Diesel Generator Low Oil Alarm
Two Open Doors Type 5kW / 5.5 kW Silent Diesel Generator Low Oil Alarm
Product Data:
Model No. LRB6500DGS | ||
Rated frequency(Hz) | 50hz | 60hz |
Rated speed(r/min) | 3000 | 3600 |
Rated Voltage(V) | 220 | 120/240 |
Rated current (A) | 20.5 | 40/20 |
Rated output(kw) | 4.5 | 5.0 |
Max.output(kw) | 5.0 | 5.5 |
DC output(V.A) | 12/8.3 | |
Power factor(Cos￠) | 1.0 | |
Phase NO. | Single or 3 phase | |
Noise level@ 7m | 72-74 | |
Structure type | Silent Type | |
Excitation mode | Brushless or Brush AVR | |
JEngine No. | TP186FA | |
Displacement(cc) | 418 | |
Compression ratio | 19:1 | |
Fuel type | 0#(summer)-10#(winter)-35#(chiness)diesel | |
Lube oil type | CD grade or SAE10W-30,15W-40 | |
Starting system | Electric start | |
Battery AH | 12V/17AH—36AH | |
Protection system | Low oil alarm | |
Overall dimensionL×W×H(mm) | 950*570*770 | |
Net Weight | 170 | |
Gross Weight | 175 | |
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
