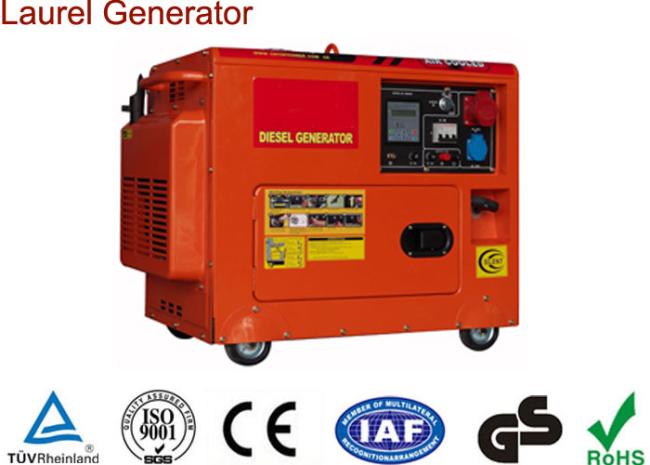

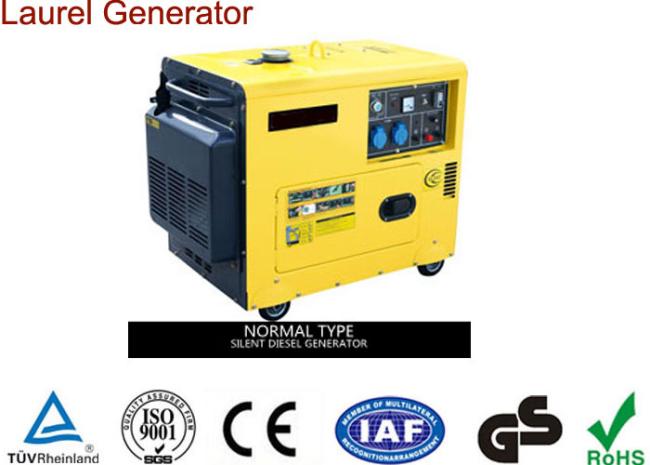

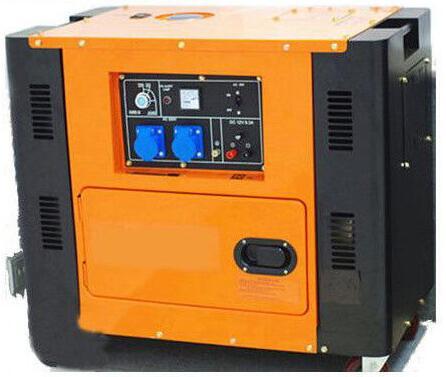

Square Type Silent Diesel Generator Electric Start Low Oil Alarm 4.5 kW - 5kW
Square Type Silent Diesel Generator Electric Start Low Oil Alarm 4.5 kW - 5kW
Specifications:
Model No. LRB 6500DGS | ||
Rated frequency(Hz) | 50hz | 60hz |
Rated speed(r/min) | 3000 | 3600 |
Rated Voltage(V) | 220 | 120/240 |
Rated current (A) | 20.5 | 40/20 |
Rated output(kw) | 4.5 | 5.0 |
Max. output (kw) | 5.0 | 5.5 |
DC output(V.A) | 12/8.3 | |
Power factor(Cos￠) | 1.0 | |
Phase NO. | Single or 3 phase | |
Noise level@ 7m | 72-74 | |
Structure type | Silent Type | |
Excitation mode | Brushless or Brush AVR | |
Engine No. | TP186FA | |
Displacement(cc) | 418 | |
Compression ratio | 19:1 | |
Fuel type | 0#(summer)-10#(winter)-35#diesel | |
Lube oil type | CD grade or SAE10W-30,15W-40 | |
Starting system | Electric start | |
Battery AH | 12V/17AH—36AH | |
Protection system | Low oil alarm | |
Overall dimension L×W×H(mm) | 950*570*770 | |
Net Weight | 170 | |
Gross Weight | 175 | |
Our products :
Our main export products are diesel generators, small power gasoline or diesel generators, small power gasoline or diesel engines, gasoline pumps and other machinery products, as well as architectural glass and other building materials. We have obtained the relevant certifications such as ISO, CE, ROHS, GS, TUV etc.
