Plastic Fuel Tank 8 KW Inverter Gasoline Air-cooled Generator OHV
Plastic Fuel Tank 8 KW Inverter Gasoline Generators Air-cooled OHV
Specifications:
1. 230V,50Hz
2. Rated 8000W, max 8500W generator
3. Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine
4. Single phase
|
Generator set |
Model |
LR8800I |
|
Rated frequency(Hz) |
50 |
|
|
Reted voltage(V) |
230 |
|
|
Reted output power(KVA) |
8 |
|
|
Max. output power(KVA) |
8.5 |
|
|
Rated rotation speed(rpm) |
3000 |
|
|
Total Harm onic Distortion(THD) |
<3.5%(typical) |
|
|
<5%(maximum) |
||
|
DC output |
12V 8A |
|
|
Power factor cos |
1 |
|
|
Phase number |
Single phase |
|
|
Noise level dB@7m(zeroload-fullload) |
70-72 |
|
|
Fuel tank(L) |
40L |
|
|
Over dimension(L*W*H)(mm) |
820x620x650 |
|
|
N.W/G.W(kg) |
112/115 |
|
|
Engine |
Engine model |
WG405 |
|
Engine type |
Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine |
|
|
Displacement(cc) |
405 |
|
|
Compression ration |
8.5:1 |
|
|
Rated power(Hp/rpm) |
14/3600 |
|
|
Rated ratation speed(rpm) |
3600 |
|
|
T.C.I |
With |
|
|
Spark plug |
F6RTC |
|
|
Starting system |
Recoil starter |
|
|
Rotation direction(view from flywheel) |
Clockwise |
|
|
Fuel type |
Automotive unleaded gasoline |
|
|
Lube oil brand |
SAE10W30(above CC grade) |
|
|
Low oil alarm system |
With |
Production Machinery:
|
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
|---|---|---|---|
|
Punching Machine |
J23, JB04-1 |
7 |
5.0 |
|
Cutting Machine |
215 |
3 |
5.0 |
|
Tube Bending Machine |
DB38 |
3 |
5.0 |
|
Plate Shearing Machine |
QC12Y-4*2500 |
1 |
5.0 |
|
Drilling Machine |
Z512,Z4116 |
8 |
5.0 |
|
Bench Milling Machine |
Xj51 |
1 |
5.0 |
|
Welding Machine |
TCW-32D, NBC-350, DN160 |
10 |
4.0 |
|
Winding Machine |
PR-2 |
2 |
4.0 |
|
Cleaning Machine |
ZQX-2000 |
1 |
3.0 |
|
Marking Machine |
HUAPU |
2 |
4.0 |
|
Hydraulic Machine |
MAOYI, 5T |
8 |
4.0 |
Testing Machinery:
|
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
|---|---|---|---|
|
Withstand Voltage Tester |
CS2670A |
4 |
3.0 |
|
Low DC Resistance Tester |
TH2512, WB2511A |
2 |
3.0 |
|
Performance Test Bench |
No Information |
4 |
5.0 |
|
Spring Tension Tester |
TLS-S |
1 |
3.0 |
|
Rockwell Apparatus |
HR-150A |
2 |
3.0 |
|
Gear Runout Tester |
1-6mm |
1 |
3.0 |
|
Torque Tester |
NJ-100 |
1 |
3.0 |
|
Test Platform |
No Information |
1 |
3.0 |
|
Inverter Welder Tester |
SJ |
1 |
4.0 |
|
Turbine Dynamometer |
No Information |
2 |
4.0 |
Delivery time:
SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

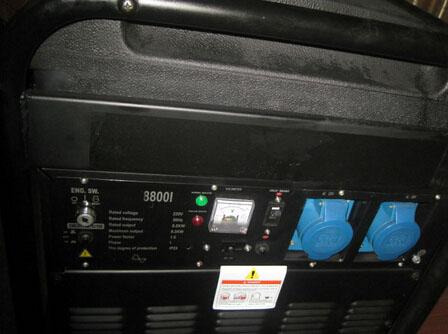

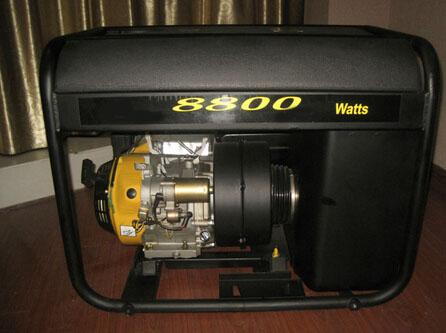

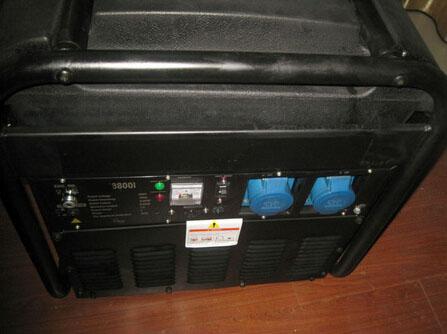

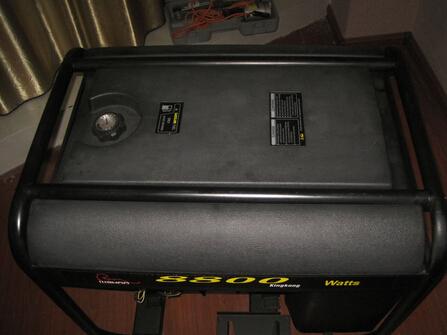

Pictures of Product:
