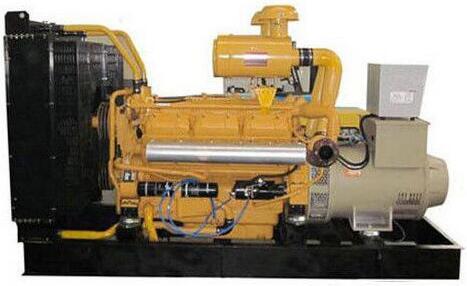

Auto Start 50hz 600kw Doosan Diesel Generator Set Open / Soundproof Type for Office Building / Villa / Museum
Auto Start 50hz 600kw Doosan Diesel Generator Set Open / Soundproof
Type for Office Building / Villa / Museum
Output Ratings:
|
Gensets Model |
Prime Power |
Standby Power |
||
|
kW |
kVA |
kW |
kVA |
|
|
TP825D |
600 |
750 |
660 |
825 |
|
Voltage |
380V-415V |
220V-240V |
190V-208V |
|
Amps |
1043-1140 |
1804-1968 |
2082-2279 |
Ratings and Performance Data :
|
Engine Brand |
Doosan |
|
|
Engine Model |
HR222LC |
|
|
Alternator Brand |
Stamford |
|
|
Alternator Model |
LVI634B |
|
|
Control System |
DSE6020 / DSE3110 |
|
|
Standard Noise Level@7m (Soundproof Sets) |
102 |
|
|
Circuit Breaker Type |
3 Pole MCCB |
|
|
Frequency & Phase |
50Hz & 3PH |
|
|
Engine Speed: RPM |
1500 |
|
|
Fuel Tank Capacity: L |
Open |
/ |
|
Soundproof |
||
|
Fuel Consumption (l/hr) |
110% Load |
/ |
|
100% Load |
161.0 |
|
|
75% Load |
119.1 |
|
|
50% Load |
79.3 |
|
|
Lubricant |
15W40 |
|
|
Total Lubricant Capacity (L) |
43 |
|
Features:
1. Standard open type is good to working in engine room with ventilation system.
2. The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.
3. Standard soundproof type(IP21) will be working perfectly in the open air
4. All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
5. All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
6. 50℃radiator
7. IP54 (soundproof sets), IP56 (control system)
8. Base fuel tank for at least 8 hours running
9. For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.

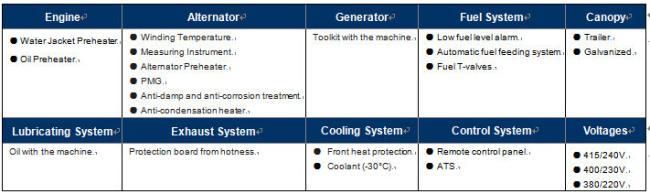

Optional:
