Single / Three phase Diesel Generator 5.5kw Elelctric Start with Bettery
Unique Appearance and Function Diesel Generator 5.5kw Elelctric Start with Bettery
Specifications:
|
Diesel Generator (Silent Type) |
||||||
|
Model |
LF2500DG |
LF3500DG |
ZH6500DG |
LF8600DG |
LF12000DG |
LF15000DG |
|
Output Power |
1.7kw-2.2kw |
2.8kw-3.2kw |
5kw-5.5kw |
6kw-7kw |
8.5kw-10.5kw |
9.5kw-11.5kw |
|
Elelctric start with bettery |
||||||
|
Engine Model |
HR170F/E |
HR178F/E |
HR186FA/E |
HR186FA/E |
HR840 |
HR840 |
|
Model |
2.5HP |
3.7HP |
6.3HP |
6.3HP |
14HP |
14HP |
|
Engine Type |
(Air-cooled;4-stroke;OHV,single cylinder) |
|||||
|
igniting System |
Transistor magneto |
|||||
|
Starting System |
Electric |
|||||
|
Displacement |
211cc |
296cc |
418CC |
418CC |
836CC |
836CC |
|
Fuel tank capacity |
13.5L |
13.5L |
13.5L |
13.5L |
25L |
25L |
|
Min.Fuel Consumption |
284g/kw/h |
280g/kw/h |
|
|
|
|
|
Lube.oil capacity |
0.75 Liters |
1.1Liters |
1.65 Liters |
|
|
|
|
A.C.frequency |
50/60HZ |
|||||
|
Rated Voltage |
110/220V |
|||||
|
Dimension(LxWxH) |
640x480x 540mm |
660x505x 565mm |
745x505x 655mm |
745x505x 655mm |
930x685x 930mm |
930x685x 930mm |
|
Net weight |
48kg |
65kg |
105kg |
105kg |
185kg |
185kg |
|
20FT Quantity Set |
108 |
108 |
104 |
104 |
55 |
55 |
|
40‘HQ Quantity Set |
360 |
360 |
250 |
250 |
120 |
120 |
Product Features:
1. CE; SONCAP;ISO9001:2008 certification are approved
2. Mproved Fuel Efficiency, Longer Life & Less Maintenance

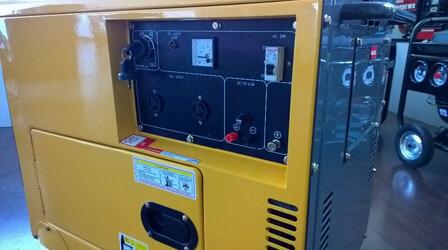

3. Automatic Voltage Regulation Protects Solid State Equipment, Convenient Control Panel Features 2AC Outlets, 1 DC outlet, Low Oil Shutdown Protects
4. The Engine By Automatically Turning Off When Oil Is Low
5. Portable compact open structure,equipped With 10 inch wheels and stationary handle for easy portability
6. Generator Comes With Oil, Battery, 30A Cord, and a 1 Year Limited Warranty
7. Powers fridge, furnace, lights, TV, and much more
8. Patent design, unique appearance and function;Advance technology, with THD<5% available
