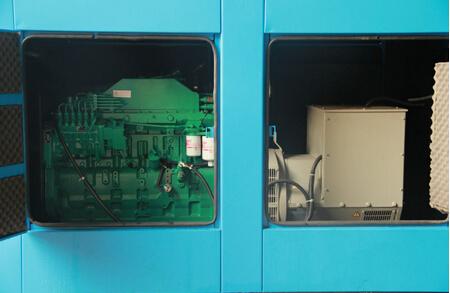

CE and ISO Approved Silent Diesel Generator Set
CE and ISO Approved Silent Diesel Generator Set with Cummins Engine , 50HZ or 60HZ 120KVA / 100kw
Specifications:
|
Genset Model |
LFGF-100 |
|
|||
|
Genset |
Power Capacity (kw/kva) |
100/125 |
|||
|
Rated Voltage (V) |
400/230 |
||||
|
Rated Current (A) |
180 |
||||
|
Rated Frequency (Hz) |
50 |
||||
|
Rated Speed (rpm) |
1500 |
||||
|
Power Factor / Phase |
Cos 0.8 Lagging, 3 phase |
||||
|
Cooling System |
Closed cycle water-cooled with fan,water tank |
||||
|
Overall Dimension (L×W×H) (mm) |
3000x1100x1700 |
||||
|
Gross Weight (kg) |
1900 |
||||
|
|
Engine Brand |
Cummins |
|||
|
Diesel |
Engine Model |
6BTA5.9-G2 |
|||
|
Prime Power (kw) |
100 |
||||
|
Engine Structure |
6 Cylinder,Vertical,Inline,4 stroke |
||||
|
Bore×Stroke (mm) |
102x120 |
||||
|
Displacement (L) |
5.9 |
||||
|
Compression Ratio |
17.5:1 |
||||
|
Lube Capacity (L) |
20 |
||||
|
Fuel System |
PT type fuel injection pump |
||||
|
Fuel Consumption (g/kw.h) |
207 |
||||
|
Lube Consumption (g/kw.h) |
0.5% |
||||
|
Rotating Speed (rpm) |
1500 |
||||
|
Speed Governing |
EFC electronic speed governor |
||||
|
Starting Method |
By 24batteries |
||||
|
|
Alternator Brand |
YLFDJ |
|||
|
Alternator |
Alternator Model |
YLW-100 |
|||
|
Insulation Class |
Class B |
||||
|
Steady Voltage Regulation |
≤ +/- 0.5% |
||||
|
Instant Voltage Ragulation |
-15%~+20% |
||||
|
Voltage Fluctuation Rate |
≤ +/- 0.5% |
||||
|
Steady Frequency Regulation |
≤ +/- 0.5% |
||||
|
Instant Frequency Ragulation |
-7%~+10% |
||||
|
Phase/Connection Type |
3 phase 4 wire/Y type |
||||
|
Controller |
Controller Brand |
ZZ6110 |
|||
Payment & Delivery Terms :
1. Minimum Order Quantity: 1 set.
2. Packing Details: standard export packing.
3. Delivery Time: 20 days after receipt of deposit or original L/C.
4. Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5. Valid time of the quotation: 30 days.
Attachment list :
1. Fuel connecting pipes
2. 12V DC battery c/w battery cables 2 sets
3. Industrial type silencer c/w stainless steel flexible exhaust bellows
4. Shock absorption rubbers 4 pcs
5. The tool kit and 1 set of manuals (English version).
