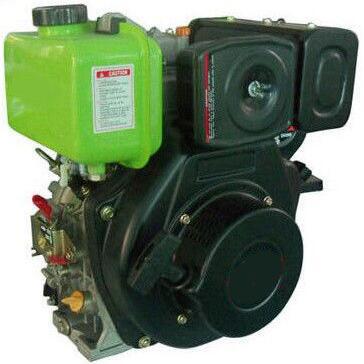

Single Cylinder Swirl Chamber Industrial Diesel Engines Kick Start / Electric Start for Automobile

 Model

RZ170F

-D

RZ173F

/FE-D

HR178FA

/FAE

HR186FA

/FAE

Engine

Engine

type:

Single cylinder,tilt,4-stroke,air-cooled,swirl chamber

diesel engine

Single

cylinder,vertical,

4-stroke,air-

cooled ,direct

injection diesel

engine

Bors×Stroke:

mm

68×54

73×68

78×64

86×72

88×72

Cubic cc.:

cc

196

284

305

418

438

Compression

ration:

22.5:1

22:1

20:1

19.1:1

19.5:1

Rated power

(3600rpm):

kW

2.3

4.41

4/3000,

4.5/3600

6/3000,

6.6/3600

6.5/3000,

7.3/3600

Max.outpur

(3600rpm):

kW

2.57

4.85

4.4/3000,

4.85/3600

6.6/3000,

7.2/3600

7.2/3000,

8/3600

Fuel tank capacity/

Continuos

working time:

L/h

3.3/3.8

4/2.6

3.3/2.2

4.8/2.2

4.8/2.0

Oil capacity:

L

0.7

0.9

1.1

1.65

1.65

Fuel comsuption ratio:

g/kw.hr

≤330

≤295

≤285

≤280

≤280

Oil consumption ratio:

g/kw.hr

≤5.2

≤5.2

≤4.08

≤4.08

≤4.08

Alimentation:

Natural

Cooling system:

Forcible air

Starting system:

Recoil start

Recoil start/

Electric start

Electric start

Rpm:

rpm

3000

3000/3600

Fuel type:

0# in summer,-10#

in winter diesel oil

Lube.brand:

SAE10W-30

SAE20W-40(above CC grade/)

Lubrication:

Splashing

Press,Splashing

Ignition:

Compression ignition

Transmission:

Threader shaft/Taper shaft/

Keyway shaft

Rotation direction:

Anti-clockwise

(View from output terminal)

Net/Gross weight:

kg

21/23

30/33

33/36

48/51

48/51

59/62

60/63
