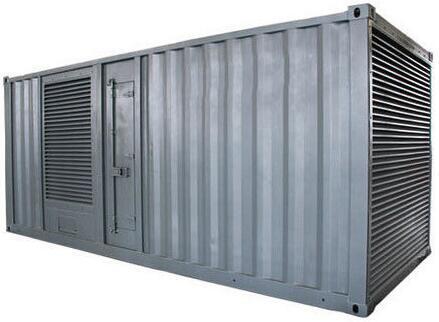

20KW Container Genset Electric Power Diesel Sound-Proof Genset Auto Start Controller
20KW Container Genset Electric Power Diesel Sound-Proof Genset Auto Start Controller
Details:
|
Output Type: |
AC Three Phase |
Speed: |
1500RPM |
Frequency: |
50HZ |
|
Rated Power: |
Prime power 320kW |
Rated Voltage: |
400/230V or as per requirement |
Rated Current: |
577A or variable according to output voltage |
|
Engine Brand: |
MTU |
Fuel injection: |
Advanced electronic fuel injection |
Engine feature: |
ADEC module perform engine pre-check and protection |
|

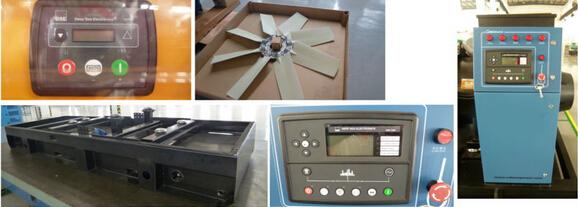

Controller: |
Deepsea 7320/ 8610 |
Controller feature: |
Auto Mains Failure detecting |
Sound-proof enclosure: |
Available |
|
Quality Standard: |
CE,CCC, ISO 9001, ISO 14001 |
Color: |
Blue, Yellow, White, As Per Requirement |
Noise: |
70~75 dB(A) @ 7m |
|
Option: |
ATS, Synchronization, exterior fuel tank, High-voltage etc |

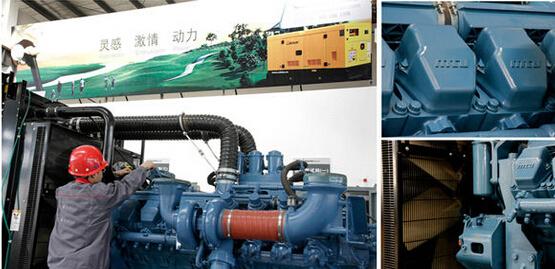

MTU engine: 8V1600G20F
Prime/Standby Power: 400/440kva
Generator Supply Scope:
1. The output voltage may be tailored to meet various requirements, and the coupled alternator may differ. For details please contact us.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, Protection Grade IP23, Insulation Class H with AVR (Auto Voltage Regulator) Fitted. (Stamford, Engga and Marathon for Option).
3. Generator is mounted on a skid frame with AVM (Anti Vibration Mounting) System, Exhaust System, Battery, Battery Charger and lead wires. For generator prime power < 650kva, a day tank is on the bottom of frame. For generator prime power ≥ 650kva, an optional exterior fuel day tank is available.
4. Generator is equipped with Chinese brand Circuit Breaker, ABB is an option.
5. Complete documentations such as User' Manuals for generator /Engine /Alternator, factory test reports etc.
6. Warranty: 1000 operation hours or 12 months from the date of commissioning, whichever comes first.
Optional Generator Accessories:
|
Engine |
Heaters |
|
|
|
Alternator |
Single phase, three phase |
Brushless, carbon brush |
High Voltage |
|
Control System |
Key Start/Auto Start Controller |
Remote Controller |
ATS Controller |
|
Fuel System |
exterior Fuel Tank |
|
|
|
Generator Type |
Weatherproof/Soundproof Type |
Container Type |
Trailer/Mobile type |
|
Spare Parts |
Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List, etc |
||
Compliance Standards:
To BS4999/5000 pt 99, VDE 0530,UTE5100, NEMA MG1-22, CEMA, IEC 34,
CSAA22.2, AS1359, BSS 5514, ISO 3046 and ISO 8528
Series Products list
|
1 |
LF280M |
224 |
404 |
6R1600G10F |
LSA46.2 L9 |
DSE 7320 |
|
2 |
LF 300M |
240 |
432 |
6R1600G70F |
||
|
3 |
LF 313M |
250 |
451 |
6R1600G20F |
LSA46.2 VL12 |
DSE 7320 |
|
4 |
LF 344M |
275 |
496 |
6R1600G80F |
||
|
5 |
LF 375M |
300 |
541 |
8V1600G10F |
LSA47.2 VS2 |
DSE 7320 |
|
6 |
LF 413M |
330 |
595 |
8V1600G70F |
||
|
7 |
LF 400M |
320 |
577 |
8V1600G20F |
LSA47.2 S4 |
DSE 7320 |
|
8 |
LF 440M |
352 |
635 |
8V1600G80F |
||
|
9 |
LF 450M |
360 |
649 |
10V1600G10F |
LSA47.2 S5 |
DSE 7320 |
|
10 |
LF 500M |
400 |
721 |
10V1600G70F |
