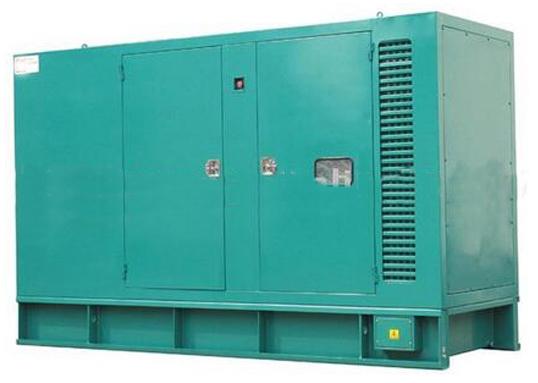

140kw Electric Soundproof Cummins Diesel Generator , 220 / 380v AC Three Phase
140kw Electric Soundproof Cummins Diesel Generator , 220 / 380v AC Three Phase
Specifications
1.Cummins diesel generator
2.Cummins OEM
3.CE & ISO9001:2008
4.12 months warranty
5.Reliable quality & comepetitive price
140kw Cummins Generator Supply Scope:
1.Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.brand-new engine
3.brand new brushless alternator, single bearing, flange connection, IP23, H insulation class,with AVR.
4.auto control panel, with LCD display.
5.Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
5.Circuit Breaker,Exhaust Silencer
6.Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
7.Anti-vibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
8.Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
| Genset Model | LFS155GF | |||||||
| Prime Power | 140KW | |||||||
| Rated Voltage | 400/230V(Adjustable) | |||||||
| Frequency | 50Hz(Adjustable) | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimension (L×W×H) (mm) | 2400*1050*1767 | |||||||
| Genset weight (kg) | 1980 | |||||||
| Diesel Engine | ||||||||
| Brand | Cummins | |||||||
| Model | 6CTA8.3-G2 | |||||||
| Alternator | ||||||||
| Brand | Stamford/Marathon/Engga | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| The components of the genset | ||||||||
| (1) Cummins Diesel Engine; (2)Engga Alternator; (3) Control Panel | ||||||||
| Control Panel | ||||||||
| The control panel is GU620A control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
Why choose us?
Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main products are diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
