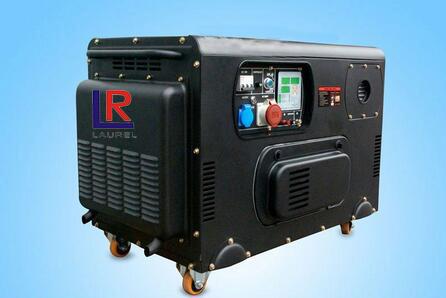

12.5kVA Electric Diesel Generator 400V / 230V with AVR / Brush Voltage Regulation
12.5kVA Electric Diesel Generator 400V / 230V with AVR / Brush Voltage Regulation
Service assurance of generator:
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Diesel Generator Data:
| Description | Diesel Generator Model | LR12000S |
| Reference | ||
| Diesel Generator Set | Rated PowerkW/kVA | 11.3KVA |
| Max.PowerkW/kVA | 12.5KVA | |
| Frequency (Hz) | 50HZ | |
| Voltage (V) | 400/230V | |
| Current (A) | 9A | |
| Sockets | EU 2x16A | |
| Display | LED or LCD | |
| Battery (Ah) | No | |
| Fuel Tank Capacity (L) | 15 | |
| Running Time under 50% Load (hr.) | 6.3 | |
| Noise Level behind 7 Meters (dBA) | 65 | |
| DC Output (V/A) | 12 / 8.3 | |
| ATS Port as optional | choose | |
| Air Pre-heater as optional | Yes | |
| Remote Control as optional | Yes | |
| Push Wheels kit as optional | Yes | |
| Engine | Engine | LE840E |
| Power Output (HP/3000rpm) | 10 | |
| Start Method | Electric Start | |
| Displacement (cc) | 840 | |
| Oil Capacity (L) | 1.65 | |
| Alternator | Alternator | 5kw190L-140 |
| Rated Power (kW) | 5 | |
| Power Factor (Cosφ) | 1 | |
| Voltage Regulation | AVR / Brush | |
| Transportation Data | N.G.kg | 220 |
| G.W.kg | 250 | |
| Product Dimension (mm) | 900*660*720 | |
| Package Dimension (mm) | 930*690*750 | |
| Max Quantity(set)/Container | 35/20GP;75/40GP;105/40HQ |
FAQ
Q1: What's your MOQ of this Item?
A1: 1 set
Q2: What's your payment term?
A2: L/C and T/T
Q3: Where is your Loading Port?
A3: Guangzhou,China Port or according to your requirements.
Q4: How about your quality control in your factory?
A4: Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers’ benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
