1kW Small OHV Engine Gasoline Powered Generator Copper Wire 1kva Strong Frame 3800RPM
1kW Gasoline Generators Small OHV Engine Copper Wire 1kva with Strong Frame 3800RPM
Quick Details:
| Generator | Rated frequency (Hz): | 50 | 60 |
| Rated voltage (V): | 230 | 120 | |
| Rated output power (kW): | 1 | 1.1 | |
| Max output power (kW): | 1.1 | 1.3 | |
| Rated rotation speed (rpm): | 3000 | 3600 | |
| DC output: | 12V 8A | ||
| Power factor cos: | 1 | ||
| Phase number : | Single phase | ||
| Noise level dB (A)/7m (zero load-full load): | 65-68 | ||
| Fule tank[L]: | 12L | ||
| Set | Overall dimensions [mm] ( L x W x H ): | 465x365x380 | |
| N.W/G.W[Kg]: | 26/28 | ||
| Engine | Engine model: | BS154F/BS156F | |
| Engine type: | single cylinder, 4-stroke, air-cooled, OHV, gasoline engine | ||
| Displacement [cc]: | 87 | ||
| Compression ratio: | 8.5:1 | ||
| Rated power [(HP/rpm]: | 2.6/3600 | ||
| Rated rotation speed (rpm): | 3600 | ||
| T.C.I: | with | ||
| Spark plug: | F6RTC | ||
| Starting system: | recoil starter | ||
| Rotation direction (view from flywheel): | clockwise | ||
| Fuel type: | automotive unleaded gasoline | ||
| Lube oil brand: | SAE10W30 (above CC grade) | ||
| Low oil alarm system : | with | ||
Features:
1. Portable compact
2. Economical, reliable and durable
3. Long run time - up to 13.5 hours
4. AVR to automatically regulate voltage
5. Oil alert to shut down engine automatically when low oil is detected
6. Circuit breaker to stop engine automatically when overloaded
7. Powers fridge, furnace, lights, TV, computer, and much more
8. CE, ISO certification approved
9. One year or 500 hours warranty
Other Types Available:
| Model | 2500 | 3500 | 3500-1 | 4500 | 5500 | 6500 | BS7500 |
| Rated output power | 2.0KW | 2.5KW | 2.8KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW |
| Max output power | 2.3KW | 2.8KW | 3.0KW | 3.5KW | 4.5KW | 5.5KW | 6.5KW |
| Rated frequency | 50hz | 50hz | 50hz | 50hz | 50hz | 50hz | 50hz |
| Rated voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Rated rotation speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
| DC output | 12V 8A | 12V 8A | 12V 8A | 12V 8A | 12V 8A | 12V 8A | 12V 8A |
| Power factor cos | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Noise level (db(A)/7m) | 68-72 | 70-72 | 70-72 | 70-72 | 70-74 | 70-74 | 70-74 |
| Model | BS160 | BS 210 | BS210 | BS270 | BS390 | BS390 | BS420 |
| Bore x stroke | 68*45mm | 70*52mm | 70*52mm | 77*58mm | 88*64mm | 88*64mm | 90*64mm |
| Displacement | 163cc | 210cc | 210cc | 270cc | 389cc | 389cc | 423cc |
| Compression ratio | 8.2:1 | 8.0:1 | |||||
| Max.Output(HP/rpm) | 5.5/3600 | 7.0/3600 | 7.0/3600 | 9.0/3600 | 13.0/3600 | 13.0/3600 | 15/3600 |
| Max torque(HP.m/rpm) | 9.5/2500 | 11.6/2500 | 11.6/2500 | 16.7/2500 | 23.0/2500 | 23.0/2500 | 23.5/2500 |
| Ignition system | non-contact transistorized ignition(TCI) | non-contact transistorized ignition(TCI) | |||||
| Starting System | recoil and hand-operated | recoil and hand-operated | |||||
| Rotation direction | clockwise | ||||||
| Air cleaner | semi-dry,oil bath,dual,double silent and cyclone type | ||||||
| Spark plug | F6RTC | F6RTC | F6RTC | F6RTC | F6RTC | F6RTC | F6RTC |
| Fuel consumption | 295g/HP-hour | 280g/HP-hour | 280g/HP-hour | 280g/HP-hour | 280g/HP-hour | 280g/HP-hour | 275g/HP-hour |
| Overall Dimension | 605*445*435 | 710*530*550mm | |||||
| N.W/G.W | 42/44kg | 44/45kg | 45/46 | 68/69kg | 76.5/76.8kg | 78.8/80.5kg | 82/84kg |
| 20FT/40HQ | 235sets/585sets | 136sets/292sets | |||||

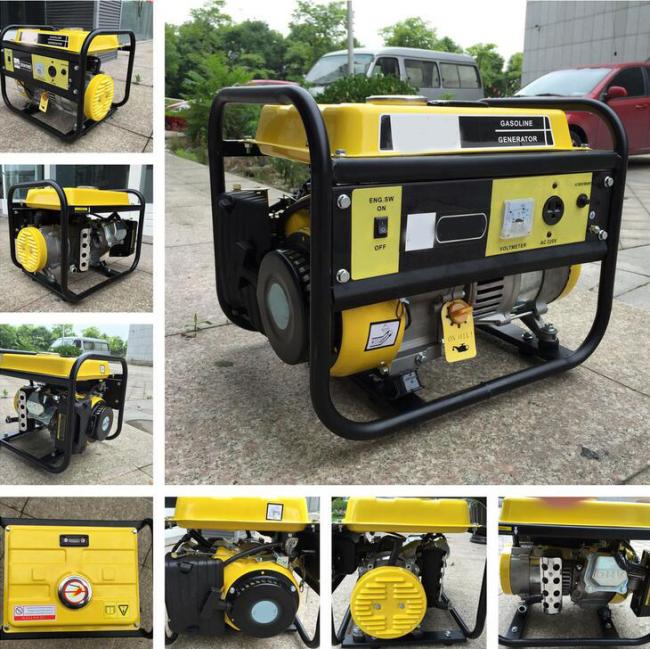

Gasoline Generators Picture:
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
