Single Cylinder Gasoline Engines
Single Cylinder Gasoline Engines Electric Start New with 50cc 4 Stroke for Generator , Water Pump
Specifications:
1. new technology, super silent
2. Big fuel tank,long run time
3. economic, reliable, durable
Features:
1. Portable compact open structure
2. Economical, reliable and durable
3. Long run time - up to 13.5 hours
4. Oil alert to shut down engine automatically when low oil is detected
5. CE, SONCAP, ISO certification approved
6. One year or 500 hours warranty
Product Details:
| Model | BS90 | BS160 | BS200 | BS210 | BS270 | BS390 | BS420 |
| Engine type | BS154F | BS168F | BS168-1F | BS170F | BS177F | BS188F | BS190F |
| Bore x Stroke | 154*38mm | 168*45mm | 168*52mm | 170*52mm | 177*58mm | 188*64mm | 190*64mm |
| Displacement | 83cc | 163cc | 196cc | 210cc | 269cc | 389cc | 420cc |
|
Compression ratio |
7.7:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 | 8.0:1 | 8.0:1 |
| Max out(HP) | 2.6 | 5.5 | 6.5 | 7.0 | 9.0 | 13 | 15 |
| Max out(KW) | 2.0 | 4.1 | 4.9 | 5.3 | 6.8 | 9.6 | 11.3 |
| Oil Capacity | 0.37L | 0.6L | 0.6L | 0.6L | 1.1L | 1.1L | 1.1L |
| Fuel Capacity | 1.6L | 3.6L | 3.6L | 3.6L | 6.0L | 6.5L | 6.5L |
|
Min,Fuel Consumption ( g-hp/H ) |
450g | 295g | 280g | 280g | 280g | 275g | 275g |
|
Dimensions (LxWxH) |
300x290x280 | 390x330x350 |
510x400x 460 |
510x430x 475 |
510x430x 475 |
||
| Net weight | 10.6kg | 15kg | 16kg | 17kg | 28kg | 33kg | 34kg |
| Ignition system | non-contact transistorized ignition(TCI) |
||||||
| Starting System | recoil and hand-operated |
||||||
| Air cleaner | semi-dry,oil bath,dual,double silent and cyclone type | ||||||
| Spark plug | F6RTC | F6RTC | F7RTC | F7RTC | F7RTC | F7RTC | F7RTC |
|
20FT Quantity set |
630 | 630 | 630 | 630 | 268 | 268 | 268 |
|
40HQ Quantity set |
1505 | 1505 | 1505 | 1505 | 652 | 652 | 652 |

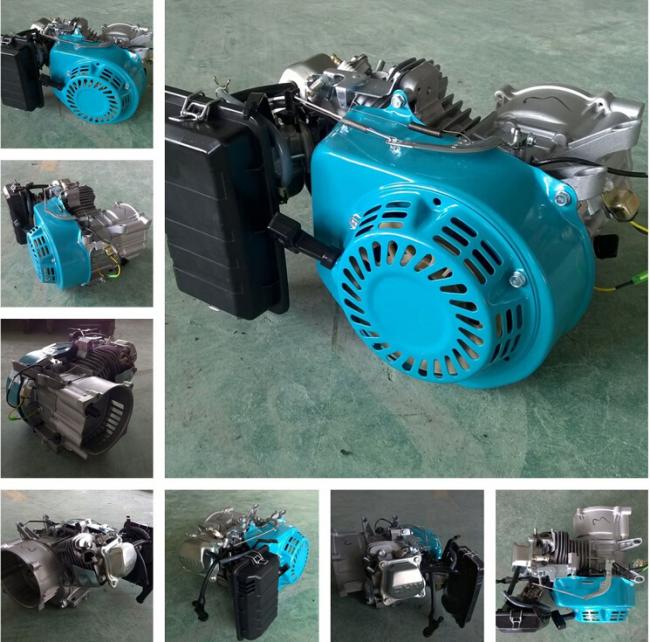

Gasoline Generators Picture:
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
