Fire Fighting Diesel Agricultural Water Pump 6 Inch High Pressure
Fire Fighting Diesel Agricultural Water Pump 6 Inch High Pressure
Application:
This diesel pump set is for water transmission below 80 °C. Candidate for other liquid with similiar physical,chemical properties.
Mainly applied for fire fighting system, water plant, building water supply, irrigation and drainage pumping stations, power plants, industrial water systems, shipbuilding industry, mine drainage and oil, chemical, metallurgical industries.
Water Pump Set Standard Configuration:
| Diesel engine | 1 set |
| Water pump | 1 set |
| Control Panel | 1 set |
| Flexible shaft joint | 1 set |
| Foot mounting with fuel tank | 1 set |
| Accessory | 1 set |
| Instruction and manual | 1 set |
| Inlet/Outlet flange, bolt&screws, bottom valve and filters |
optional |
Diesel Engine Feature:
|
Model
|
6CTA8.3-G2 |
| Power Rated/Standby | 163/179KW |
| Rated speed | 1500RPM |
| Starting method | Electric motor, 24V DC |
| Cooling method | Closed water cooling |
| Speed governor | Mechanical or Electronic |
| Intake method | Turbocharger, aftercooler |
| Cylinders | In line 6 |
| Bore/Stroke | 102/120mm |
| Type | 4 stroke, direct injection |
Pump Feature:
|
Model
|
MD155-30*5 |
| Outflow | 100-185m3/h |
| Head | 163-138m |
| Inlet diameter | 150mm(6inch) |
| Outlet diameter | 125mm(5inch) |
| Casing material | iron cast |
| Shaft material | iron cast |
| Impeller material | iron cast |
| Sealing method | Stuffing sealing or Mechanical sealing |
| Type | Single grade, single suction,centrifugal |
Control Panel:
1. Operation function: Start/stop, emergent stop, reset etc.
2. Display function: speed, lube/water temperature, lube pressure etc.
3. Alarm and protection: speed exceeding, temperature high, lube pressure low etc.
4. Accessory optional: Automatic control box, AMF, ATS, Remote control function

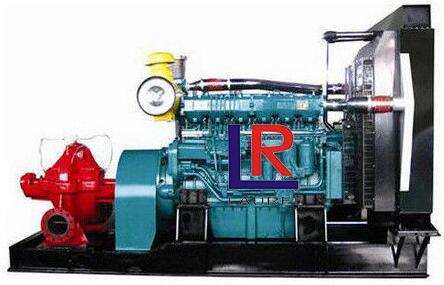

Water Pumps Pictures:
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
