50hz 1500rpm / Min Generator Electric Diesel Alternator 220v With AMF Control Panel
50hz 1500rpm / Min Generator Electric Diesel Alternator 220v With AMF Control Panel
Quick Details:
A. Water-cooled Perkins generator
B. Open type Diesel generator set
C .Ce certificate
D. Perkins OEM Factory
Product Configuration:
| 1. Specification of genset | ||||||||
| Gensets model | QD400P | |||||||
| Prime power | 36KW/45KVA | |||||||
| Standby power | 40KW/50KVA | |||||||
| Rated Voltage | 220/380V | |||||||
| Rated frequency(HZ) | 50HZ | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 1911x802x1384 | |||||||
| Genset Weight(kg) | 860 | |||||||
| 2. Specification of alternator | ||||||||
| Engine brand | Perkins | |||||||
| Engine model | 1103A-33TG1 | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged, Air / Air Cooling | |||||||
| Fuel System | Direct injection | |||||||
| Bore×Stroke (mm×mm) | 105x127 | |||||||
| Displacement (Liter) | 3.3 | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| 100%/70%/50% loading | 10.8/8.2/5.7 | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Alternator model | UCI224D | |||||||
| Number of Phase | 3 | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| Machine weight:KG | 193 | |||||||
| 4. Specification of control Panel | ||||||||
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
Features:
Model Number: LF400P
Output Type: AC Three Phase
Speed: 1500RPM
Frequency: 50HZ
Rated Power: 36KW/45KVA
Rated Voltage: 380/400/415/440V
Rated Current: 63A
Alternator: Standford,Chinpower
Standford,Chinpower: Deepsea, Chinpower
Fuel: diesel ,method,Water cooled
Warranty: 1year or 1000 hours
Starter Motor: DC24V
Protection Grade: IP23
Insulation Grade: H
Certificate: CE/BV/ISO
Payment: 30%TT +70%TT or 70%LC
Discount price: 3% for 10pcs

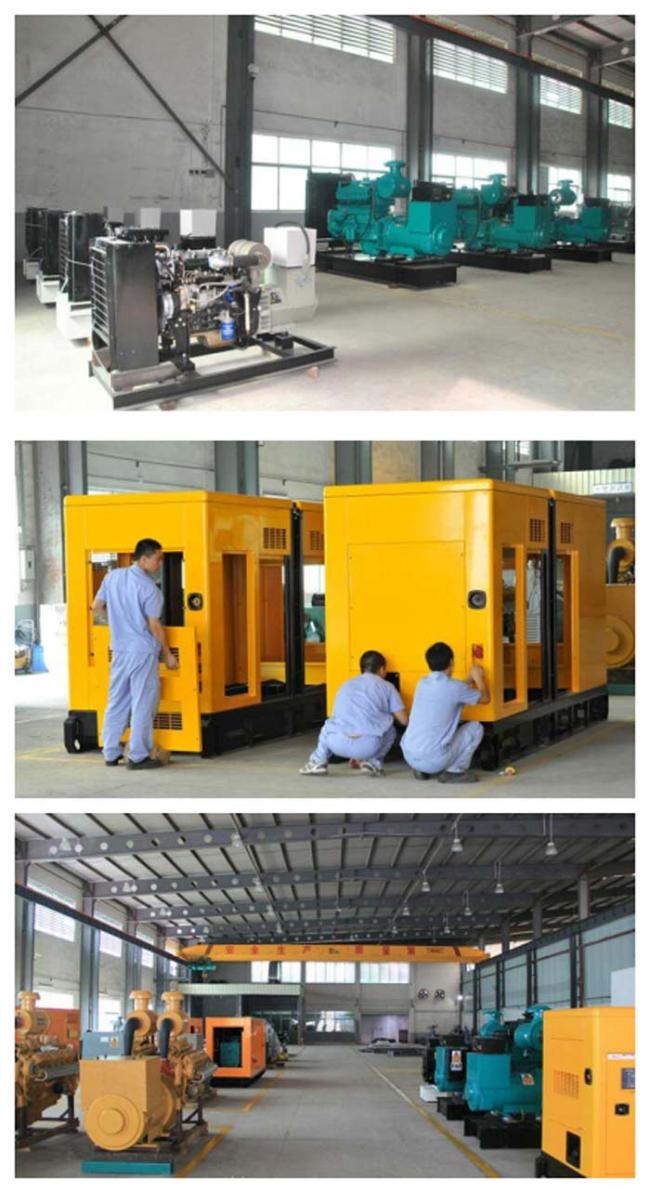

Product Pictures:
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
