Energy Efficient Natural Gas Generators 1500rpm 1000kw Bio Gas Generator

Energy Efficient Natural Gas Generators 1500rpm 1000kw Bio Gas Generator

Datasheet:

Applied gas:

Natural Gas, Biogas, City Sewage Gas, Landfill gas, Oil gas, farm biogas, Coal mine gas,etc

Acceptable fuel gas pressure: 5~12kPa

CH4 content: for natural gas≥85% CH4 ,content:for biogas≥40%

Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Gen set output power will increase as the gas heat

 value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power

efficiency.

Gas does’t include free water or free materials (the size of impurities should be less than 5μm.)

H2S content≤200mg/NM³

NH3 content≤20mg/NM³

Impurities content≤30mg/NM³;size≤5μm

Water content≤40g/NM³, no free water.

Acceptable working conditions:

Ambient temperature : -10°C~+40°C

(antifreeze or preheater needed for below 0‘C)

Relative humidity:<90%(20'C)

Altitude:≤1000m

Normal working conditions:

Gen set can run at rated power on the conditions:

Atmospheric Pressure: 100kPa, Ambient Temp: 20'C, Relative Humidity: 30%.

Standard Scope of Supply:

1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston,

cylinder head, etc made by US Googol with best quality

2. Brand new brushless France Altercate,Leroy Somer,Stamford alternator

3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H

(60Hz 1200RPM option)

4. Radiator for 40'C/50'C ambient temperature

5. Ignition system adopted Germany Motortech

6. Emergency stop mounted

7. Battery,Battery cable and Battery charger

8. Standard tool box

9.Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )

10.Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)

Accessories list

1. Maintenance Operation manual

2. Quality certificate, Gen-sets ex-factory testing re

Optional:

1. Sound-proof / Container canopy

2. CHP & CCHP system

3. Grid parallel system

4. Remote radiator or horizontal type radiator

5. Auto oil filling system

6. Water heater

7. Oil heater

8. Gas leaking detector

9. Flame detector

10.Gas scrubber

11.Desulfuration, water deprivation, dedust,etc

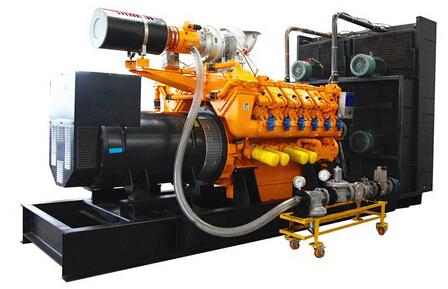

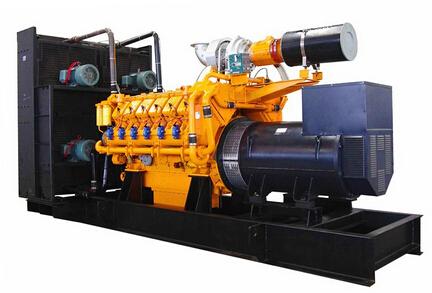

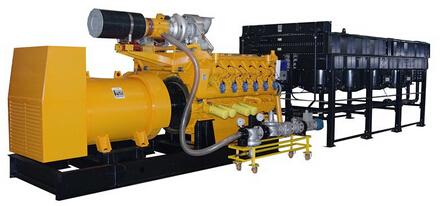

Generators Set Picture:

Manufacture's Advantages:

1. Our factory was founded in 1981.
2. Main Products:  diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.

 Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
