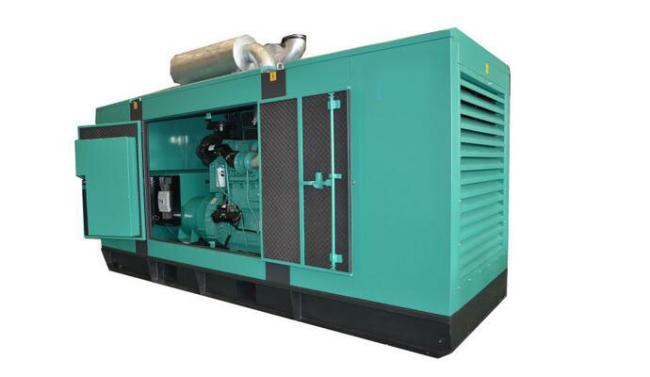

50hz Googol 250kw Silent Diesel Generator Set 300kva Diesel Genset
50hz Googol 250kw Silent Diesel Generator Set 300kva Diesel Genset
Specifications:
Water Cooled 50Hz Googol Diesel Genset Rating power:250kw/312.5kva
|
Generator set |
Genset Model |
LF343 |
|
|
Rating Power (kW/kVA) |
250/312.5 |
||
|
Standby Power (kW/kVA) |
275/343 |
||
|
System Voltage |
400/230 |
||
|
Rating Ammeter (A) |
451 |
||
|
Diesel engine |
General data |
Engine model |
PTA780-G1 |
|
Prime Power (KW) |
290 |
||
|
Standby Power (KW) |
330 |
||
|
number of Cylinder & Configuration |
6 cylinders in line |
||
|
Bore X Stroke (mm) |
128X166 |
||
|
Displacement (l) |
12.8 |
||
|
Compression Ratio |
15.5:1 |
||
|
Governor type |
Electronic governor |
||
|
Rated speed (rpm) |
1500 |
||
|
Exhaust system |
Exhaust gas flow (m³/min) |
54 |
|
|
Exhaust gas temperature (ºC) |
480 |
||
|
Max. exhaust back pressure (kPa) |
10 |
||
|
Air intake system |
Aspiration Type |
Turbocharged & After cooled |
|
|
Max. intake depression (mbar) |
6 |
||
|
Combustion air Volume (m³/min) |
21 |
||
|
Fuel system |
Rating Fuel Consumption(l/h) |
64 |
|
|
75% full Fuel Consumption (l/h) |
48 |
||
|
Lubrication system |
Total oil capacity (l) |
40 |
|
|
Max permissible oil temp (ºC) |
110 |
||
|
Oil pressure at rated rpm (KPA) |
240-350 |
||
|
Cooling system |
Total Coolant capacity (l) |
65 |
|
|
Max. temperature of coolant (ºC) |
100 |
||
|
Fan cooling air flow (m³/min) |
490 |
||
|
Alternator |
Alternator model |
MGA315-250-4S |
|
|
Rating Voltage(V) |
400/230 |
||
|
Rating Capacity(KW/KVA) |
250/312.5 |
||
|
Eff.% |
93.2% |
||
|
Power Factor |
0.8 |
||
|
Exciting type |
Brushless self-exciter AVR |
||
|
Voltage regulation |
±1% |
||
|
No. of Phase |
3 phase 4 wire |
||
|
Enclosure Class |
IP121 |
||
|
Class of Insulation |
H |
||
|
Battery |
Rating Capacity(AH) |
2X150AH 12V |
|
|
Dimension |
Generator set dimension (LXWXH) |
2900x1120x1550 |
|
|
Weight |
Generator set Net Weight (kg) |
2380 |
|
Performance Feature:
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
World most famous brand diesel engine.
World famous brand AC alternator.
Advanced and reliable control module
Full range protection function and alarm shutdown feature.
Alternator Feature:
Brush-less, 4 poles, rotation magnet.
IP21-23(NEMA1) enclosure is standard for all industrial alternators.
The insulation system is Class H
Simple installation and maintenance, with easy access to terminals, rotating diodes
and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents
AVR auto voltage regulator, auto exciter, auto adjustment
Standard Accessory:
Steel Weatherproof Canopy
Built In Fuel Tank For 8 Hours Running
Built In Control Panel
Built In Start Battery
Power Output Rapid Insert
Windows for Looking
Air Louver for Intake & Exhaust
Exhaust Gas Silencer
Soundproof Type
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and
connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger,
Control system with RS232/485 communication interface, Battery charger by main
supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
