350-800kva Silent Power Generator UK Engine Water Cooled Generator Electric Diesel

 350kva-800kva diesel generator power plant

Silent Canopy

SPECIFICATION

container type silent generator’s design is based on the normal or automatic diesel generator set

and extended with the state-of-art noise enclosure to make the noise of the generator less than

 85dB(A) at 1m, or70~75dB(A) at 7m, 60~65dB(A) at 15m.

High performance

 multi-way air intake and exhaust guarantee the power performance of generator.

 large-scale impedance combined type silencer effectively reduce noise of the generator.

Construction features

Cold steel materials.

 Zinc plated and Corrosion resistance.

Elegant appearance and reliable quality.

Stainless steel locks and hinges.

Access to all weather conditions.

Fireproof, waterproof and dustproof.

Ladders in the side for easy access to the top.

 High quality soundproof materials could efficiently reduce noise.

Maintenance features

180° resolvable and disassemble door for easy maintenance.

 Container type locks for easy operation and indefectible.

Lights inside of the canopy for maintenance.

Security and Safety

Transparent viewing window make the control panel clear at a glance.

 Emergency stop button mounted on the canopy exterior.

 Pipe of lube oil and cooling fluid is mounted on the bottom of generator for easy let.

Fuel refill and battery can easily be accessed by lockable door.

Cooling fan and battery are fully guarded.

 Heat insulation of exhaust smoke system inside the canopy.

Fire extinguishers are easily got at the door.

Transportation

Lifting ear is mounted in the base frame and on the top.

3. Alternator Brand:Stamford,Marathon ,MECC, Copy Stamford ,Faraday,and other brand .

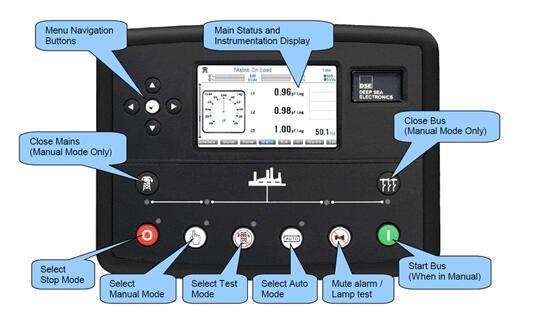

4. Controller:DSE ,SMARTGEN

1) Automatic control panel: use Smartgen or DSE controller: with automatic start, automatic stop; disply current, voltage, frequency, power, power factor, oil temperature, water temperature, oil pressure. Automatic protection function: overload, short circuit, high water temperature, low oil pressure, oil temperature and overspeed protection function;

2) Switch: the French model high beauty technology, small size, impact resistance, large current, high sensitivity, short trnsition time, etc.

3) Function: after the power grid, the controller signal launch, 10 seconds to start the generator set (time can be adjusted 3 to 30 seconds) switch switch to power generation side. After the mains calls, controller signal downtime, delay 3 minuts downtime generator speed down.

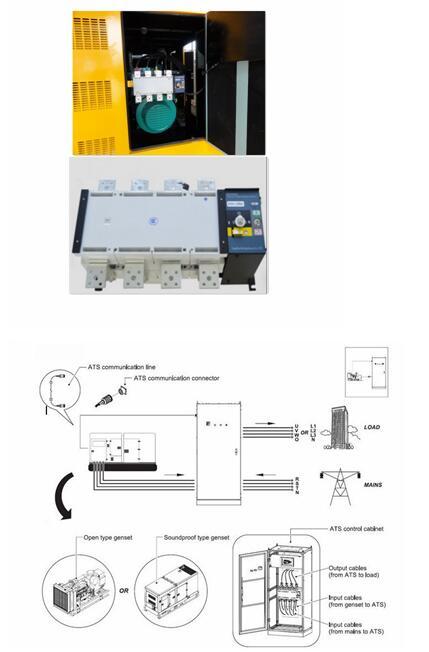

5,ATS:

1) automatic control panel: use Smartgen 6120 LCD controller: with automatic start, automatic stop; display current , voltage, frequency, power, power factor, oil temperature, water temperature, oil pressure. Automatic protection function: overload, short circuit, high water temperature, low oil pressure, oil temperature and overspeed protection function;automatic protection function: with overload, short circuit, high temperature, low oil pressure, under voltage, oil temperature, downtime, overspeed protection function

2) Automation controller: the LCD panel: display current, voltage, frequency, control of generating set automatic start, automatic stop and fault alarm.

3) Switch: the French model high beauty technology, small size, impact resistance, large current, high sensitivity, short transition time, etc.

4) Function: after the power grid, the controller signal launch, 10 seconds to start the generator set (time can be adjusted 3 to 30 seconds) switch switch to power generation side. After the mains calls, switch to the mains switch, and the controller signal downtime, delay 3 minutes downtime generator speed down.

Warranty

a, Two years after installation;

b, 1200 running hours (accumulated); subject to the earlier one.

c, The Spare parts can be provided free within one year .
