5kw 5kva Portable Diesel Generator Silent Manual or Electric Start
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5 to 35 working days depends on your quantity
Brand:
Laurel
Product Description
5kw 5kva Portable Generators Diesel Silent Manual Or Electric Start
Product Description
5KW Semi Silent Diesel Generator with CE, SONCAP, CIQ
1. Hand start(recoil) / key start with battery is optional
2. Power output: 2KW -10KW 50/60 Hz
3. Copper/ aluminium Alternator is optional
4. Muffler / Silencer with low noise, motorcycle silencer is optional
5. Cast iron cam shaft, high quality carburetor
6. Best quality Crank Case
7. Galvanized shining screw, A++ grade piston
8. Strong carton packing, inside with foam and wood
9. Single-Phase or three phase is optional
1. Hand start(recoil) / key start with battery is optional
2. Power output: 2KW -10KW 50/60 Hz
3. Copper/ aluminium Alternator is optional
4. Muffler / Silencer with low noise, motorcycle silencer is optional
5. Cast iron cam shaft, high quality carburetor
6. Best quality Crank Case
7. Galvanized shining screw, A++ grade piston
8. Strong carton packing, inside with foam and wood
9. Single-Phase or three phase is optional
Specification:
| Rated Frequency(Hz) | 50 | 60 |
| Rated Voltage(V) | 220,230,240,220/110.230/115,240/120; 220/380.230/400 | |
| Rated Output Power(KVA) | 4.5 | 5.0 |
| Max Output Power(KVA) | 5.0 | 5.5 |
| Rated Rotation Speed(rpm) | 3000 | 3600 |
| DC Output | 12V 8.3A | |
| Power Factor cosΦ | 1/0.8 | |
| Phase Number | Single /Three | |
| Excitation Transistorized | Self-Excitation,brushless | |
| Noise Level(Dba@7m)(Zero Load~Full Load) | 70-74 | |
| Structure Mode | AVR Brush or Self-exciation Brushles | |
| Engine Model | LE186FAE | |
| Engine Type | 1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine | |
| Compression ratio | 19:1 | |
| Rotation Direction(View from Flywheel) | Clockwise | |
| Lube | SAE10W30(Above CD Grade) | |
| Low Oil Pressure alarm system | With | |
| Optional Standard | ATS | |
| Remote Control | ||
| Three Phase Voltage | ||
| Digital Panel | ||
| Net Weight(Kg) | 170 | |
| Overall Dimension(mm)(LxWxH) | 960*560*770 | |

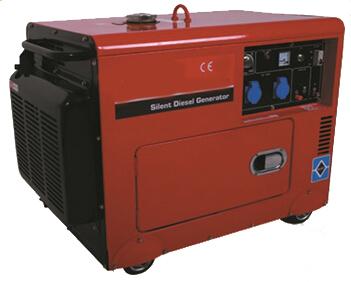

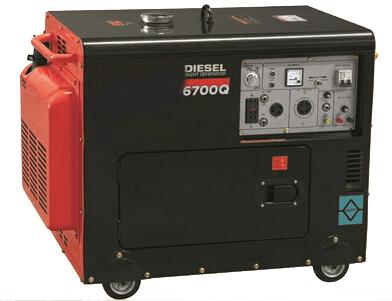

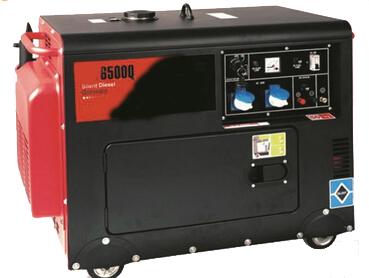

Diesel Generators Picture:
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
