230 / 400V Adjustable 50kw Cummins Diesel Generator Set 60KVA Rated Power

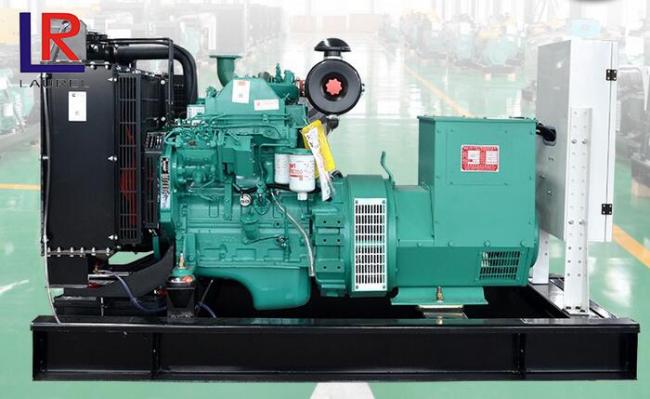

230 / 400V Adjustable 50kw Diesel Generator Powered by Cummins Engine
FAQ
Q1: What's your MOQ of this Item?
A1: 1 PCS
Q2: What's your payment term?
A2: L/C and T/T
Q3: Where is your Loading Port?
A3: Guangzhou,China Port or according to your requirements.
Q4: How about your quality control in your factory?
A4: Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers’ benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our Services
1.OEM is available,we accept your brand and designing of packing cartons.
2.We supply samples for your reference and checking.
3.Delivery time:at least 15 days after receiving your deposit.
4.Warranty:1 Year,except the easily damaged parts.
Genset data:
| Model | LF60GF |
| power | 50kw/62.5kva@1500RPM |
| Voltage | 230/400V(Adjustable) |
| Phase | 3 |
| Fuel tank Capacity | 160L |
| Open type Dimension | 1800*750*1200mm |
| Open type Weigh | 950kg |
| Portable Silent type Dimension | 2400*1000*1560mm |
| Portable Silent type Weight | 1450kg |
| Packing | polywood case for open type |
Diesel engine data:
| Engine Brand&model | Powered by Cummins 4BTA3.9-G2 |
| Prime Power | 50kw@1500rpm |
| Standby Power | 55kw@1500rpm |
| Cylinders and arrangement | 4 cylinders in line |
| Mode of operation | Four stroke diesel engine with direct fuel injection |
| Turbocharging | Turbocharged |
| Engine cooling | Forced water cooling cycle |
| Bore*Stroke | 102*120mm |
| Displacement(Liter) | 3.9 |
| Total lubrication system capacity (L) | 11 |
| Fuel Consumption at 100% Load (g/kw.h) | 205 |
| Governor Speed | Electric |
| Starting Method | DC24V electrical starting |
Alternator data:
| Standard Alternator | LA224E |
| Power | 50KW |
| Exciter type | Single bearing, Brushless, Self-excited |
| Frequency | 50HZ |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Pole No. | 4 |
| Protection Grade | IP22 |
| Phase / wires | 3 phase 4 wires |
| Optional Brands | Stamford/Leroy Somer/Marathon |
Genset supply scope
♦ Diesel engine,alternator,radiator,auto control panel
♦ Base steel frame,base fuel tank,Flexble pipes,Flange,Exhaust silencer
♦ Battery,battery charger,battery wires,internal cables,circuit breaker
♦ Manual books of engine,alternator,genset control panel,wires diagram
Optional
♦ Silent trailer/portable trailer
♦ Soundproof/rainproof enlosure
♦ ATS
♦ Remote system
