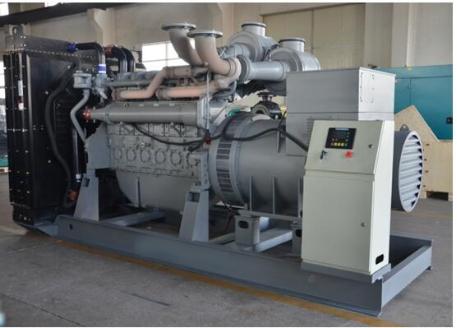

910Kva Perkins Diesel Generator Stamford With ATS , 4 Stroke 8 Cylinders
910Kva Perkins Diesel Generator & Stamford Generator with ATS , 4 Stroke 8 Cylinders Perkins Generators
General features:
Engine:Perkins 4008TAG1A(Original)
Alternator: Stamford LVI634D
Digital Controller: Deepsea DSE7320
Equipped with 50℃ Radiator;
Equipped with 24V DC Start motor;
Equipped with vibration Isolators between the engine/alternator and base frame;
Equipped with high performance maintenance-free lead-acid starting batteries and battery switch;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with high performance MCCB circuit breaker;
Designed to Comply with ISO9001&CE;
Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
WEIGHT AND DIEMENSIONS
|
Size of Genset Open Type |
4800*2100*2500mm |
|
Weight of Genset OpenType |
7700KG |
|
Size of Genset Silent Type |
N.A |
|
Weight of Genset Silent Type |
N.A |
GENSET POWER:
|
Voltage |
Hz |
Phase |
Power Factor |
Current |
Power |
Power |
|
400V |
50HZ |
3 |
0.8 |
1260A |
728KW |
910KVA |
ENGINE DATA:
|
Manufacturer/Model |
Perkins 4008TAG1A |
|
No. Of Cylinder |
8 Cylinders |
|
Cylinder Arrangement |
L Type |
|
Cycle |
4 Stroke |
|
Aspiration |
Turbocharged and Air to Air Cooled |
|
Combustion System |
Indirect Injection |
|
Bore × Stroke |
160mm x190mm |
|
Displacement |
30.56 L |
|
Compression Ratio |
13.6:1 |
|
Standby Power/Speed |
767KW @ 1500rpm |
|
Speed Governor |
Electronic |
|
Cooling System |
Forced water cooling cycle |
|
Steady speed droop |
≤1% |
|
Starter Motor |
DC24V |
FUEL SYSTEM:
|
Fuel Type |
Diesel |
|
Fuel Consumption at 100% Load |
206gram/kw.h |
LUBE OIL SYSTEM:
|
Total lubrication system capacity |
153 L |
|
Lube Oil Type |
CD15W Class and Above |
COOLANT SYSTEM:
|
Total Coolant Capacity |
149 L |
|
Max Water Temperature |
104℃ |
|
Thermostat |
82-95℃ |
ALTERNATOR DATA:
|
Manufacturer / Model |
Stamford LVI634D |
|
Prime power |
728 |
|
Frequency/speed |
50HZ/1500rpm |
|
Exciter type |
Single bearing, Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Insulation Grade |
H |
|
Pole No. |
4 |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 4 wires |

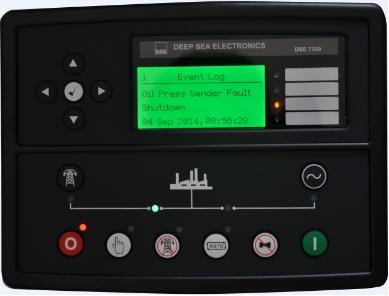

CONTROL PANEL:
The DSE7320 is an Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.
|
STANDARD ACCESSORIES |
Open type |
Silent type |
|
Sound-proof & Weather-proof Canopy |
N/A |
√ |
|
Single-bearing generator again drops |
√ |
√ |
|
Intelligent LED display control panel |
√ |
√ |
|
Speed governor |
√ |
√ |
|
Electric start and 24v charger |
√ |
√ |
|
Standard air filter, oil filter, fuel filter |
√ |
√ |
|
Cooling water tank |
√ |
√ |
|
High-efficient silencer. |
√ |
√ |
|
Exhaust elbow |
√ |
√ |
|
Storage battery |
√ |
√ |
|
Steel base-frame against vibration |
√ |
√ |
|
Soft pipe for fuel and handle for lube going-out |
√ |
√ |
|
Operation& Maintenance manual. |
√ |
√ |
