Deutz 120kw Biogas Power Natural Gas Generators Electrical Closed Circuit Water Cooling
AC Three Phase Deutz 120kw Biogas Power Generator Electrical Closed-circuit Water Cooling
Factory direct best price:
The unit adapts the environmental requirements , can be used in many places
The product has obtained CE,ISO certification,quality assurance
Novel appearance ,color can be chosen
With silencer,low noise
Common base attached to the shock absorber,small vibration
Open type genset will be much easier to maintainance and repair, with more durable performance and longer service life
Main Technical Parameters:
| rated power(kw/kva) | 120/150 |
| rated current(A) | 216 |
| rated voltage(V) | 400/230 |
| rated frequent(Hz) | 50 |
| rated speed(r/min) | 1500 |
| phase arrangement | 3P4W |
| dimensions(mm)(L*W*H) | 2650*1100*1800 |
| net weight(kg) | 2600 |
| cooling mode | closed-circuit water cooling |

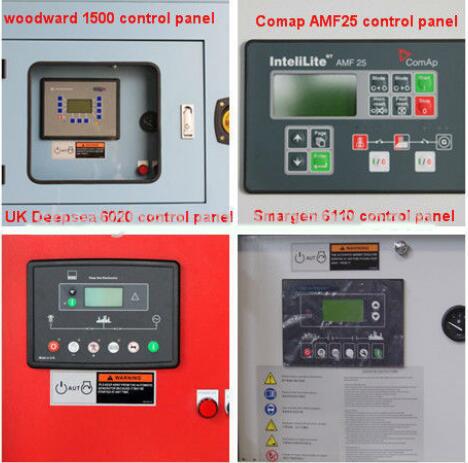

| control unit type | integral type control box(split type can be chosen) |
| low consumption | biogas consumption<0.55m³/kwh(CH4>60%) |
| good starting performance | electrical starting DC24V |
| speed mode | electrical |
Deutz Engine
| type | LE618-6ZQ |
| rated power(kw) | 132 |
| standby power output (kw) | 158.4 |
| mode | ln-line,4strokes,electric control ignition,pre-mixed stoichiometry burn |
| cylinder quantity | 6 |
Stamford Alternator
| type | LRI125 |
| excitation mode | pure copper brushless with AVR(brush mode can be chosen) |
| insulation class | H(temperature rise limit:125K) |
| protection class | IP22 |
| rated speed factor | 0.8LAG |
Quality Insurance
strict test including 50% load,75% load,100% load and 110% load
12 months or 1,000 work hours maintenance
Before Sales Service
free charge on providing analysis,technology consultation ,installation planning
Training
free charge on offering training service of operation,usage and maintenance
After Sales Service
following customers,checking up periodically and serving 24 hours
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
