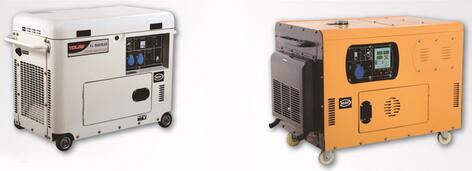

Noise - Reducing 7kw Portable Silent Diesel Fuel Generator 15HP Diesel Engine
Noise - Reducing 7kw Portable Silent Diesel Generator with 15HP Diesel Engine with Beauty Design
Specifications
Silent Diesel Generator
1. Air-cooled 15HP diesel engine
2. Noise-reducing beauty design
3.one year warranty
Silent Diesel Generator
1. CE approved, powered by advanced air-cooled diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for home emergency use or as standby power supply.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
Technical Data:
| Model | LR8800LES |
| Rated frequency (Hz) | 50 |
| Rated voltage (V) | 220 |
| Rated output power (KVA) | 6.5 |
| Rated rotation speed (rpm) | 3000 |
| DC output | 12V, 7A |
| Power factor cosφ | 1 |
| Phase number | Single phase |
| Excitation mode | Self-excitation Brushless |
| Noise level dB(A)@ 7m (zero load - full load) | 72 |
| Overall dimension [mm(in)](L× W× H) | 955× 560× 740 |
| Net weight kg | 160 |
| Structure model | Low noise type with enclosure |
| Connection mode | Single bearing, rotor drive shaft, rigid coupling |
| Engine model | 186Fa |
| Engine type | 1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
| Displacement [cm³ (Cu-in)] | 418 (24.78) |
| Compression ratio | 19: 01 |
| Rated power [KW(Hp)/rpm] | 6.3 (8.6)/3600 |
| Starting system | Electric starting |
| Rotation direction (view from flywheel) | Clockwise |
| Fuel type | 0 (sumber), 10 (winter) diesel oil |
| Lube | SAE10W30 (above CC grade) |
| Low oil pressure alarm system | With |
Why choose Laurel?
Strong R&D capacity
1.a professional technician team
2.modernized laboratory equipped with advanced facilities
3.promote new products every year
4. Laurel patent design of key parts and appearance
Powerful production capacity
1.5 production base, over 100 employees
2.annual output of 10,0000generator sets and 2 million alternators
3.key parts made by ourselves,such as alternator,engine,mufflers,control pannel,air filter,etc
4.provide OEM service for world-famous generator brand
Reliable service
1.professional subsidiary trading company, experienced staff, 35 years export history
2.annual sale volume reached $30 million
