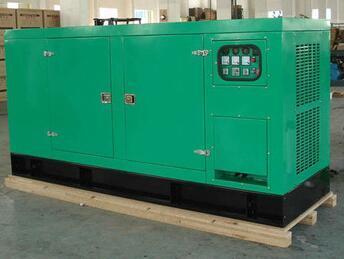

400V Soundproof 50kw Silent Diesel Generator with Cummins Engine , AC Three Phase Color Optional

Descriptions:
new design soundproof diesel generator
1.Power:50KW/62.5kva
2.Noise Level:70-75db(7m)
3.Voltage:400V
4.20 years experience
5.Good after service


Specifications:
1. engine: brand new DCEC Engine,perkins,deutz,Lovol,yanmar,and china brand
2. brushless Alternator (leroy somer, marathon or stamford)
3. rated voltage output: 400/230v(50hz), 3ph, 50hz, 1500rpm, 0.8pf, ip23.
4. 40 deg c. ambient temperature mounted on skid.
5. control panel: tide2.0controlling panel(AMF built-in)
6. safey function for:
- high water temperature
- low oil pressure
- over speed
7. 3 poles mccb with trip doll and mccb box
8. rubber mounting for engine and alternator
9. 24 v battery ( maintenance free) with battery cables and rack
10. industrial silencer with flexible bellows and flanges (loose supply for non-bonnet type)
11. external fuel tank with fuel gauge
12. output terminal for load cable
13. output sockets
14. standard tool kit
15. operation/maintenance book and parts book (in english)
16. load test certificate


Optional:
1. digital automatic transfer switch(ATS)
2. Spare parts
3. trailer
4. soundproof canopy (super silent diesel generator)
5. intelligent controlling system.

Warranty
Guarantee for one year or 1000 hours (according to whichever reach first) from ex-factory date. During the guarantee period, our Laurel Power will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials, except the damage caused by customer's incorrect manmade operation. After expiration, our company will provides cost spare parts maintenance for gen-set.


Factory internal Testing: All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
