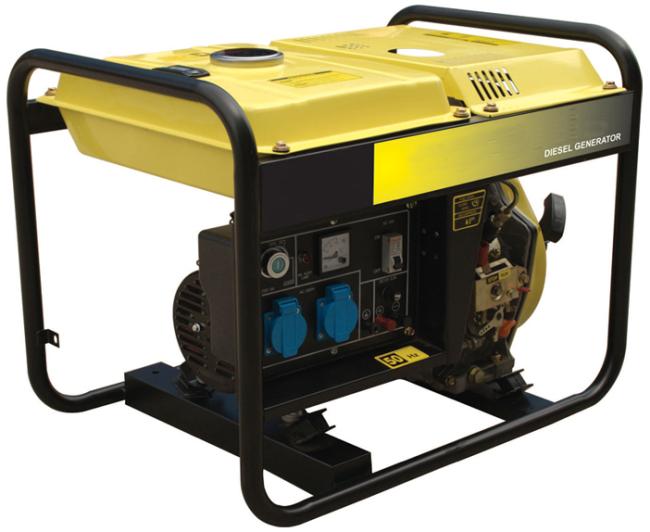

4 - Stroke 2.2 Kw Air cooled Diesel Fuel Generator Recoil Start
2.2 Kw Gasoline Power Generator, Home Generator
Product features:
• POWERFUL ENGINE
With POWERFUL strong commercial grade power.
•AVR(AUTOMATIC VOLTAGE REGULATOR)
The AVR not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.
•LOW OIL ALARM SYSTEM
Before the oil level to the limit position, generating set automatically tripping.Only to go after, the unit can restart
•FRAME PROTECTION
Frame type rack, improve the comprehensive protection, easy transportation and storage.
Technical parameters:
| Generator type | Single-phase |
| Rated frequency | 50 Hz/60 Hz |
| Rated voltage | 110V/115V/120V/220V/ 230V/240 |
| Voltage regulator system | Automatic Voltage Regulation (AVR) |
| Rated output | 1.7kW/2.0kW |
| Max output | 2.0kW/2.2 kW |
| Power factor | COS=1 |
| Charging voltage | 12V(DC) |
| Charging current | 8.3A(DC) |
| Engine model | LE170 |
| Engine type | Single cylinder,4 stroke, Air-cooled gasoline engine ,OHV |
| Displacement | 211cc |
| Compression ratio | 8.5∶1 |
| Oil capacity | 0.75L |
| Fuel tank capacity | 13.5L |
| Fuel consumption | ≤370g/Kw.h |
| Continuing time | 14h |
| Starting system | Recoil start/Electric-start |
| Ignition system | Transistorized magneto ignition |
| Noise | ≤76dB(A) |
| Dimension | 640×480×530 |
| Net weight | 53kg/60kg |
Optional configuration:
1,With optional color choices
2,With optional socket: Euro type, American type, Australian type and oversea civil use and industrial use.
3,With optional frequency choices: 50HZ/60HZ
4,With optional voltage choices :110/150/120/220/230/240V
5,With optional wheels and handle choices
6,With optional choices: handle start and electric start
7,Can be with 12V DC charger
8,With optional battery tray choices: internal and external.
