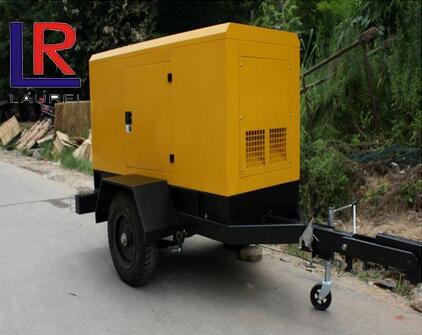

1250KVA Electronic Fuel Injection Mobile Diesel Generators CE / ISO9001/ ISO14001
High Quality Germany MTU Diesel Generator 1250KVA with Electronic Fuel Injection System
COMPANY Overview
Founded in 1981, headquarter in Guangzhou, China.
Power generator ranges: 5KVA to 3125KVA with ISO9001 standard and certified CE directive marking.
Have up-to-date international technology and manufacturing processes.
Annual output: over 5,000 sets.
LAUREL POWER GENERATOR left foot-sprints in more than 100 countries and areas with advanced products and service.
MTU Diesel Generator Data:
| MODEL | LFT1250 | |||||||
| Standby Power(50Hz) | 1000KW /1250KVA | |||||||
| Prime Power(50Hz) | 908KW /1136KVA | |||||||
| ENGINE DATA | ||||||||
| Brand / Model: | MTU/18V2000G65 | |||||||
| Air Intake System: | Turbo, Air/Air Cooling | |||||||
| Fuel System: | Electronic Fuel Injection System | |||||||
| Cylinder Arrangement: | 18 in V | |||||||
| Displacement: | 35.82L | |||||||
| Bore and Stroke: | 130*150(mm) | |||||||
| Compression Ratio: | 16:1 | |||||||
| Rated RPM: | 1500rpm | |||||||
| Max. Standby Power at Rated RPM: | 1100KW(without fan) | |||||||
| Governor Type: | ADEC | |||||||
| Exhaust System | ||||||||
| Exhaust Gas Flow: | 216m3/min | |||||||
| Exhaust Temperature: | 575°C | |||||||
| Max Back Pressure: | 8.5kPa | |||||||
| Air Intake System | ||||||||
| Max Intake Restriction: | 5kPa | |||||||
| Burning Capacity: | 75m3/min | |||||||
| Fuel System | ||||||||
| 100%(Prime Power) Load Consumption: | 202 g/Kwh | |||||||
| 75%(Prime Power) Load Consumption: | 200 g/Kwh | |||||||
| 50%(Prime Power) Load Consumption: | 204 g/Kwh | |||||||
| Oil System | ||||||||
| Total Oil Capacity: | 130L | |||||||
| Oil Consumption: | 0.5% Fuel Consumption | |||||||
| Cooling System | ||||||||
| Total Coolant Capacity: | 222L | |||||||
| Max Water Temperature: | 102°C | |||||||
| ALTERNATOR DATA | ||||||||
| Manufacturing Standards: | IEC60034-1, GB755, BS5000, NEMA MG1-22, CSA22-2, VDE0530, CE | |||||||
| Prime Power: | 910KW | |||||||
| Rated Speed: | 1500RMP | |||||||
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting | |||||||
| Power Factor: | 0.8 | |||||||
| Protection Grade: | IP22 | |||||||
| Altitude: | ≤1000m | |||||||
| Exciter Type: | Brushless, self-exciting, with AVR | |||||||
| Insulation Class, Temperature Rise: | H/H | |||||||
| Sustained Short Circuit: | 150% 2 min | |||||||
| Overspeed: | 120% 2 min | |||||||
| GENERATING SET DATA | ||||||||
| Voltage Regulation, Stead State: | ≤±1% | |||||||
| Sudden VoltS Warp(Sudden Reduce): | ≤+20% | |||||||
| Sudden Voltage Warp(Sudden Increase): | ≤-15% | |||||||
| Voltage Adjustment Range: | ≥±5% | |||||||
| Frequency Regulation, Stead State: | ≤5% Adjustable | |||||||
| Frequency Waving: | ≤0.5% | |||||||
| Recovery Time: | ≤3S | |||||||
| Certificates: | CE, ISO9001, ISO14001 | |||||||
| Emission Level: | TA-Luft | |||||||
| Open Type Overall Size: | 4600 (mm) *2100 (mm) *2290 (mm) | |||||||
| Open Type Weight: | 8990kg | |||||||
| Control Panel: | ComAp MRS10 Automatic Control Panel | |||||||
FAQ
1.What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.Does your generator have global warranty?
Yes, most of our products like Cummins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.Can you accept OEM?
Yes, we can accept OEM.
4.What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5.What is your delivery time?
Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
