DEUTZ Engine 120L 40km/H Bucket Wheel Loader
OEM Heavy Construction Machinery , 3000kg bucket Wheel Loader
OEM Heavy Construction Machinery , 3000kg bucket Wheel Loader
Technical data:
| performance | Model | LC780 |
| Rated loading | 3000kg | |
| Operation weight | 7100kg | |
| Rated bucket capacity | 1.7m³ | |
| Max.grade ability | 30° | |
| Min.ground clearance | 420mm | |
| Wheelbase | 2570mm | |
| Steering angle | 40° | |
| Max.dump height | 3200mm | |
| Dump distance | 930mm | |
| Overall dimension(L*W*H) | 6360x2180x2820mm | |
| Min.turning radius | 4720mm | |
| Track base | 1650mm | |
| Dumping angle | 45° | |
| Function of leveling automatic | Yes | |
| Engine | Brand | DEUTZ |
| Type | Vertical,In-line,water cooling,6-cylinder,turbo,type | |
| Rated power | 92KW | |
| Transmission systerm | Torque converter | YJ280 |
| Gearbox mode | Counter shaft,power-shift | |
| Gear shift | 2 forward,2 reverse(1 high speed ,1 low speed) Hydraulic gearshift(optional electric geartshift) |
|
| Max.speed | 40km/h | |
| Drive axle | Main reducing sprial | Circular arc bevel gear on 4 wheels |
| Decelerating mode | Single stage planetary type | |
| Hydraulic system | System working pressure | 16Mpa |
| System flow | 80L/min | |
| Brake system | Service brake | Hydraulic disc brake on 4 wheels |
| Parking brake | Flexible shaft operated external drum | |
| Tyre | Tyre model | 17.5-25 |
| Width | 440mm | |
| Diameter | 1280mm | |
| Filling capacity | Diesel fuel tank | 50L |
| Hydraulic tank | 40L | |
| Oil tank | 120L |
FAQ
1.Q:Are you a factory or trading company? Where is your factory located?
A: We are a factory,it is located in Guangzhou, China.
2.Q:How about quality control in your factory?
A: “ Quality is the key point, do what customers needs”
3. Q.I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A. Yes! We are always happy to work with customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
4.Q.What is your payment and delivery time?
A:"The payment is 30% by T/T as down payment,70% by T/T before shipment,and the delivery time is within 45 working days after advance payment.
Our Services
1. your inquiry related to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquires in English of course.
3.OEM&ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after sale service offered, please get back if you got question.

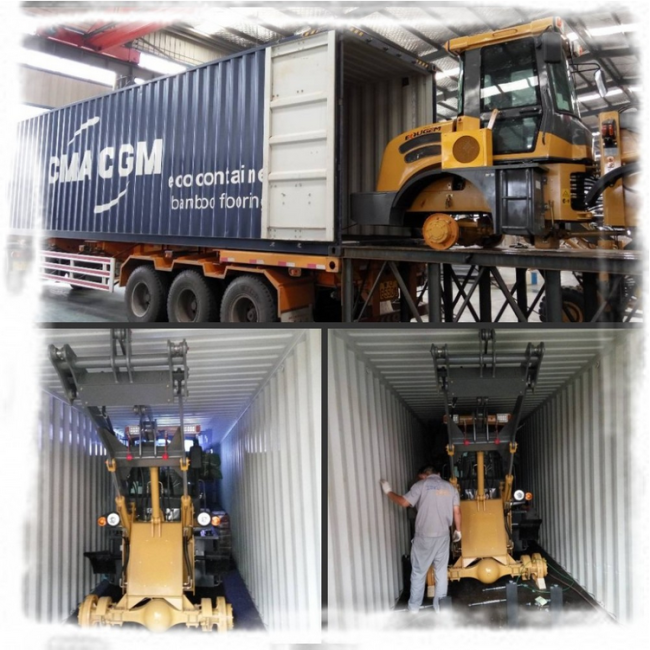

Packaging Details: Nude package, 2 units/40HQ
Delivery Detail: Shipped in 28 days after payment
