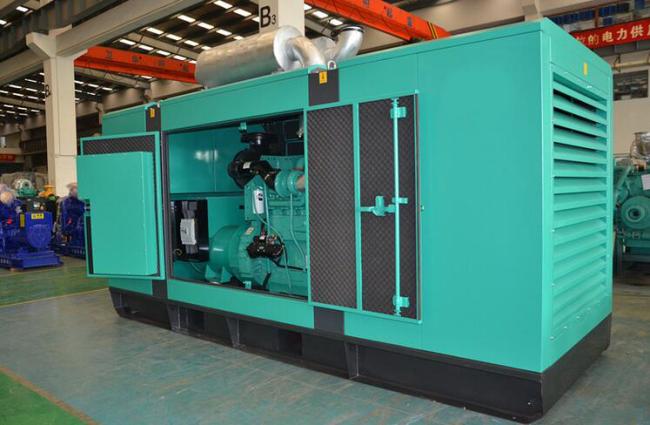

50Hz Land Use 250kw Soundproof Diesel Generator 380 / 220V With Deepsea Controller
50Hz Land Use Diesel 250kw Soundproof Generator Diesel 380 / 220V with Deepsea Controller
SUPPLY STANDARD COLLOCATION:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
OPTION ACCESSORIES:
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.
Quality Warranty Period:
All equipment is guaranteed for a period of 1000 hours running or 12 months from the date when the generator
set has been delivered from the factory.
Generator Data:
| soundproof diesel Generator set | Soundproof diesel Generator set Model |
LF343IX | |
| Rating Power (KW/KVA) | 250/312.5 | ||
| Standby Power(KW/KVA) | 275/343 | ||
| Rating Ammeter(A) | 451 | ||
| Diesel engine | General data | Engine model | MTA11-G3 |
| Prime Power(KW/HP) | 261/355 | ||
| Standby Power(KW/HP) | 291/396 | ||
| number of Cylinder & Configuration | 6 cylinders in line | ||
| Bore X Stroke (mm) | 125X147 | ||
| Displacement(l) | 14 | ||
| Compression Ratio | 14.5:1 | ||
| Governor type | Electronic governor | ||
| Rated RPM | 1500 | ||
| Exhaust system | Exhaust gas flow(m³/min) | 55.3 | |
| Max. Exhaust Gas Temperature(degree) | 484 | ||
| Max. Exhaust back Pressure(KPA) | 10 | ||
| Air intake system | Aspiration Type | Turbo & After cooled | |
| Max. intake depression(mbar) | 6 | ||
| Combustion air Volume(m³/min) | 21.3 | ||
| Fuel system | Rating Fuel Consumption(l/h) | 68 | |
| 75% full Fuel Consumption(l/h) | 71 | ||
| Lubrication system | Total oil capacity(l) | 36.7 | |
| Max permissible oil temp(degree) | 121 | ||
| Oil pressure at rated rpm(KPA) | 276_414 | ||
| Cooling system | Total Coolant capacity(l) | 69.8 | |
| Max. temperature of coolant(degree) | 100 | ||
| Fan cooling air flow(m³/min) | 490 | ||
| Alternator | Alternator model | MGA315-250-4SF | |
| Rating Voltage(V) | 400/230 | ||
| Rating Capacity(KW/KVA) | 260/325 | ||
| Eff.% | 93.5% | ||
| Power Factor | 0.8 | ||
| Exciting type | Brushless self-exciter AVR | ||
| Voltage regulation | ±1% | ||
| No. of Phase | 3 phase 4 wire | ||
| Enclosure Class | IP 21 | ||
| Class of Insulation | H | ||
| Battery | Rating Capacity(AH) | 2X150AH 12V | |
| Dimension | Generator set dimension (LXWXH) | 2900x980x1530 | |
| Weight | Generator set Net Weight (kg) | 2900 | |
