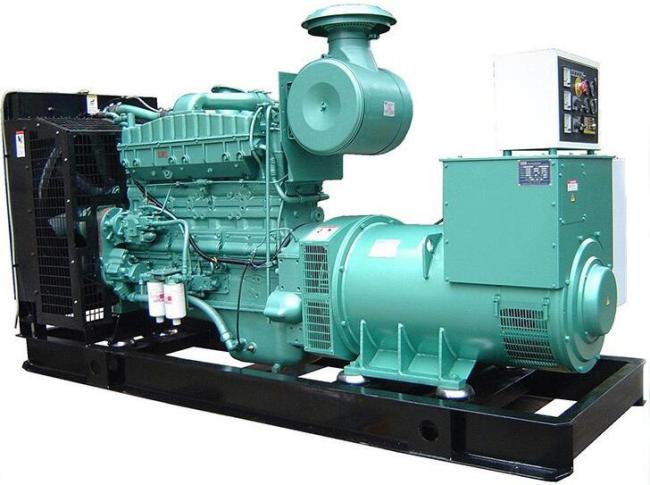

Diesel Powered Generator 400kw 500KVA with Cummins Engine 6ZTAA13-G4
High Quality Diesel Powered Generator 400kw 500KVA with Cummins Engine 6ZTAA13-G4
Manufacture Introduction:
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need diesel generators, please rememmber our company is always your reliable friends.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
Cummins generator parameters:
| The model of the unit: | LF400GF |
| Power: | 400KW/500KVA |
| Rated voltage: | 400V/230V(adjustable) |
| Rated current: | 720A |
| Rated frequency: | 50Hz/60Hz |
| The factor of rated power | COS=0.8(lag) |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10%/ +15% |
| The time of steady voltage: | ≤1.5sec |
| The waving rate of voltage: | ≤0.5% |
| The regulating rate of steady frequency: | ≤3% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3sec |
| The waving rate of frequency: | ≤0.25% |
| The waste of fuel with full load: | 206g/kw/h |
| size(mm): | 3300*1400*1970 |
| weight: | 3700KG |
Cummins Engine parameters:
| Brand: | Cummins | |
| Model: | 6ZTAA13-G4 | |
| Type: | four strokes, waste gas turbine boost,direct spurting type | |
| Cooling way: | water cooling | |
| With Type: | L type | |
| Bore *Trip : | 159mm*159mm | |
| Displacement | 19L | |
| Lubricating oil capacity: | 50L | |
| Cylinder: | 6cylinders | |
| Rotating speed: | 1500r/min or 1800r/min | |
| The regulation of rotating speed: | Electronic speed | |
| Starting way: | DC24V starting with electricity | |
Alternator parameters:
Brand: ComAp,Stamford,Marathon,Sdanford
Type: brushless (AVR automatic voltage regulating)
The connecting way of the phase: three phases four lines
Insulation degree: H degree
Grading Protection: IP21/IP23
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 7 days after deposit confirmed.
3.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What's the frequency of diesel generators?
50/60HZ
7.What's the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
