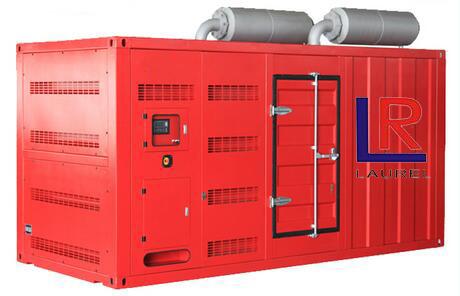

1500kVA/1200kw Silent Diesel Generator Set with 12 Cylinders Perkins Engine

Product Description:

Perkins Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.

1. Perkins: 4012-46TAG2A
2. Configuration: In line 12 cyliner
3. Cycle: 4 stroke
4. Bore/Stroke: 160/190 mm
5. Capacity: 46 litres
6. Combustion system: Direct injection
7. Induction system: Turbocharged, air to air /air to water charge-cooled
8. Cooling system: Water cooled

Alternator:

1. Bearing: Single
2. Insulation Class: H
3. Phase: 3 Phase 4 wires
4. Protection Degree: IP 23
5. Excitation way: Brushless Excitation
6. Type: Leroy-somer, Stamford, Marathon for your option

Engine Data:

Features:

FAQ

1.What is your warranty period?

Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.Does your generator have global warranty?

Yes, most of our products like Cummins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

3.Can you accept OEM?

Yes, we can accept OEM.

4.What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.

5.What is your delivery time?

Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
