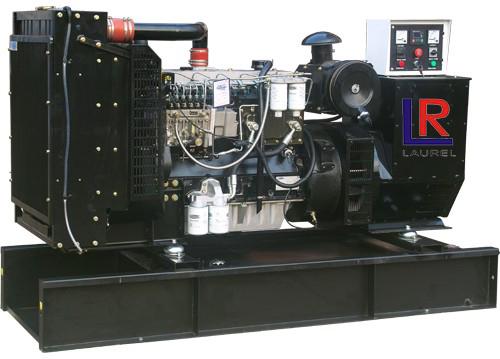

Water Cooled 8kw Mini Electric Open Diesel Generator with 1500rpm Rated Speed
Water Cooled 8kw Mini Diesel Electric Generator with British Gold Brand Engine 403D - 11G
Manufacture Introduction:
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need diesel generators, please rememmber our company is always your reliable friends.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
Generator parameters:
| Genset Model | LF8GF |
| Standby Power(KW) | 8KW/10KVA |
| Rated Voltage(V) | 230V/400V(adjustable) |
| Rated Current(A) | 14.4A |
| Rated Frequency(HZ) | 50 |
| Power Factor(COS) | 0.8(lagging) |
| Rated Speed | 1500rpm |
| Dimensions(mm) (L×W×H) | 1650×700×1200 |
| Genset Weight(kg) | 500 |
| The regulating rate of steady voltage | ≤±0.5% |
| The regulating rate of instantaneous voltage | ≤-10%/ +15% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤0.5% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±5% |
| The time of steady frequency | 3sec |
| The waving rate of frequency | ≤0.25% |
| The waste of fuel with full load | 224g/km.h |
Engine parameters:
| Engine Brand | PERKINS |
| Engine Model | 403D-11G |
| Prime Power (KW) | 9.3 |
| Standby Power(KW) | 8.4 |
| Number of Cylinders | 3 |
| Cylinder Arrangement | "L" Type |
| Cycle | Four stroke |
| Bore×Stroke (mm×mm) | 105×127 |
| Displacement (Liter) | 3.3 |
| Speed Governor | Electronic |
| Cooling System | Water Cooled |
| Lub. oil capacity (L) | 8 |
| Starting Method | DC24V starting with electricity |
Alternator parameters:
Brand: ComAp,Stamford,Marathon,Sdanford
Type: brushless (AVR automatic voltage regulating)
The connecting way of the phase: three phases four lines
Insulation degree: H degree
Grading Protection: IP21/IP23
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 7 days after deposit confirmed.
3.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What's the frequency of diesel generators?
50/60HZ
7.What's the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
