Direct Injection 400kw 500kVA Electric Silent Diesel Generator Set with 4 Stroke
Direct Injection 400kw 500kVA Electric Silent Diesel Generator Set with Four Stroke
General Features:
• Engine(Tongchai NT271ZW40)
• Radiator 50OC max, fans are driven by belt, with safety guard
• 24V charge alternator
• Alternator: SDF--400 single bearing alternator IP22, insulation class H/H
• Absorber
• Dry type air filter, fuel filter, oil filter
• Main line circuit breaker
• Standard control panel
• Two12V batteries, rack and cable
• Ripple flex exhaust pipe, exhaust siphon,flange, muffler
• China/English User manual
Generator Data:
| Genset Model | LF400GF |
| Prime Power | 400KW/500KVA |
| Rated Voltage | 400/230V |
| Frequency | 50/60Hz |
| Power Factor | 0.8(lagging) |
| The regulating rate of steady voltage | ≤±0.5% |
| The regulating rate of instantaneous voltage | ≤-15%/ +20% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| Dimension (L×W×H) (mm) of naked unit | 3126*1740*1902mm |
| Genset weight (kg) | 4160 |
Diesel Engine Data:
| Brand | Tongchai |
| Model | NT271ZW40 |
| Number of Cylinders | 12 |
| Rotating Speed | 1500/18000RPM |
| Cycle | Four stroke |
| Type | Direct Injection |
| Bore×Stroke(mm) | 135*158 |
| Displacement(L) | 27.12 |
| Lub. oil capacity | 57.4 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤1% |
| Fuel Consumption at 100% Load | 198g/kw.h |
| Starting Method | DC24V Electrical starting |
Alternator Data:
| Brand | SDANFORD |
| Model | SDF-400 |
| Number of Phase | 3 |
| Connecting Type | Three Phase and Four Lines |
| Number of Bearing | 1 |
| Grading Protection | IP22 |
| Altitude | ≤1000m |
| Exciter Type | Brushless (AVR automatic voltage regulating) |
| Insulation Class | H degree |
The components of the genset:

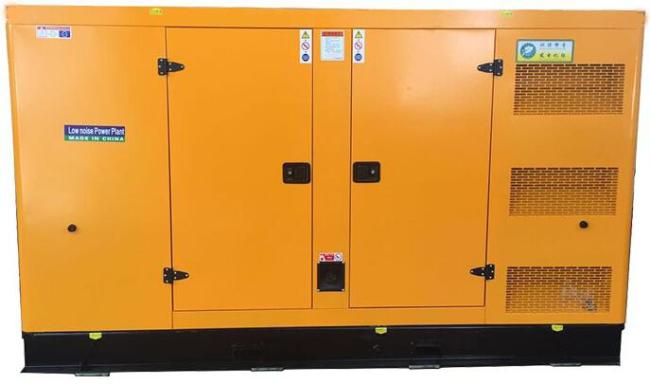

(1)Tongchai Diesel Engine with soundproof; (2) SDANDFORD Alternator; (3) Smartgen Control Panel
Control Panel :
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
