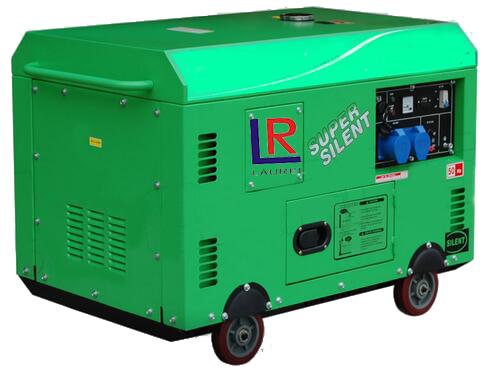

Portable 10kw Small Silent Diesel Generator with Self - excited Single Phase Electric Start CE
Portable 10kw Small Silent Diesel Generator with Self - excited Single Phase Electric Start
Generator Strength:
* Generator model: 10kw Diesel Generator Set (LR15000SE)
* With 20HP two cylinder LE2V88F diesel engine, ensure the rated output reach 9KW and max. Output can reach 10KW; Silent model can control the noise under 85dbs, applied by several families!
* All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard;
* Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!
* Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output
* 100% copper good brand alternator, every spare parts suppliers are choosed extremely strict, to control the quality well.
As a professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
Generator Data:
| GENERATOR | Model | LR15000SE | |
| Frequency(HZ) | 50 | 60 | |
| Max.output(kw) | 10 | 11 | |
| Rated output(kw) | 9 | 10 | |
| Rated.AC voltage(V) | 120,220,230,120/240,220/380 | ||
| Power factor(cosΦ) | COSΦ=1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited,2-pole,single phase alternator | ||
| Starting system | Electric | ||
| Operatong noise lecel(at 7m) | 80 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 9.4 | 8.4 | |
| ENGINE | Model | 2V88F | |
| Engine type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Bore×stroke(mm) | 88x70 | ||
| Fule | 0# or -10#light diesel oil | ||
| Lubricatiom oil volume(l) | 1.7 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase volatge | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L×W×H)(mm) | 1230x750x890 | |
| Dry weight(kg) | 250 | ||
| 20FT | 26 | ||
Our main products:
We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
We have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
