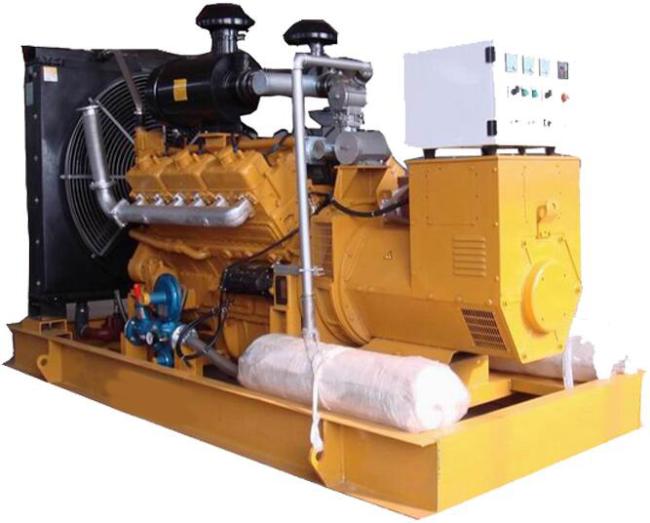

6 / 12 Cylinders Bio Gas Generator 20kw -1000kw with Closed Water cooled Professional OEM
Professional OEM Bio Gas Generator 20kw to 1000kw with Closed Water - cooled , 6 / 12 Cylinders
Product Data:
| Gas Genset | Genset model | LR20-1000 |
| Rated power(kw/kva) | 20-1000 | |
| Gas Engine | Engine model | 12V138QI |
| Rated power(kw/kva) | 230/287.5 | |
| BorexStroke(mm) | 138*150 | |
| Rated speed (rpm) | 1500/1000 | |
| Starting system | Electric starting(DC24V ) | |
| Governing method | Electrical | |
| Cooling system | Closed water-cooled | |
| No of cylinder | 6/12 cylinders in-line | |
| Inspiration method | Turbo-charged | |
| Gas consumption(m3/kw.h) | 0.32 | |
| AC Alternator | Alternator model | Stamford/Marathon/other |
| Excitation mode | brushless | |
| Insulation class | H | |
| Protection class | IP23 | |
| Factor | 0.8 Lagging | |
| Phase/Wires | 3 phase 4 wire | |
| Gas Genset | Overall dimention(LxWxH) (mm) | 3250x1450x2100 |
Laurel advanced core technology :
Electrical Control and Gas Mix Technology
1. Full capacity output in low methane density condition.
2. Quick response to instantaneous load fluctuation.
Lean Combustion Technology
1. Less gas consumed
2. Lower exhaust temperature which results in longer engine life.
3. Lower annually operating cost
4. Lower emission
5. High efficiency
ADVANCED GAS TECHNOLOGY WILL BRING YOU HUGE ECONOMIC BENEFIT
There are three popular ways to utilize gas to generate electricity nowadays:
1. Boiler +steam turbine
2. Gas turbine +team turbine
3. Gas engine
Among the three, the third one outweighs the others by having the following advantages:
1. High electrical efficiency
2. Low requirements to gas and load can be adjusted automatically according to gas concentration
3. Wide range of rating
4. Advanced technology assured stable performance
5. Compact structure, small size and light weight make installation and transportation easier.
6. Simple operation and quick start and shut down enable convenient maintenance.
7. Various safety measures warrant reliable performance
8. Flexible accessories
